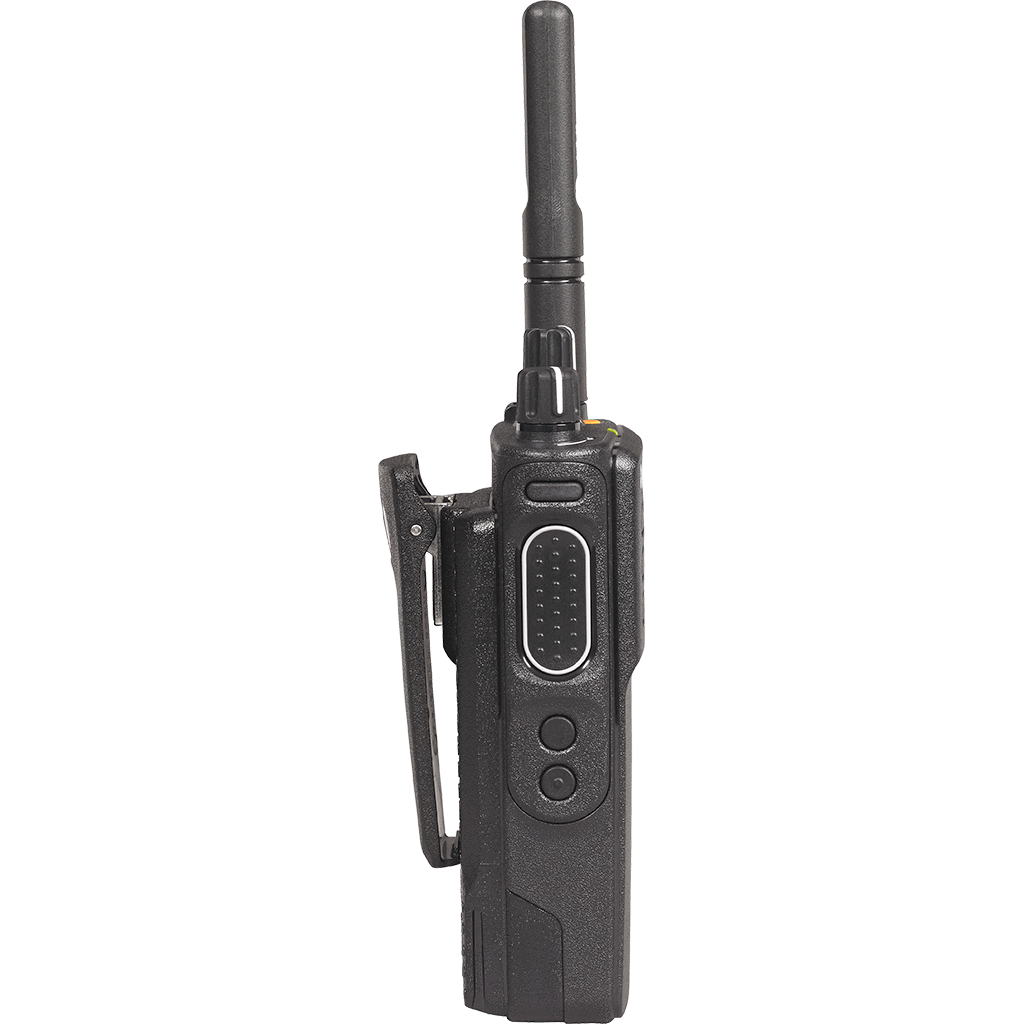

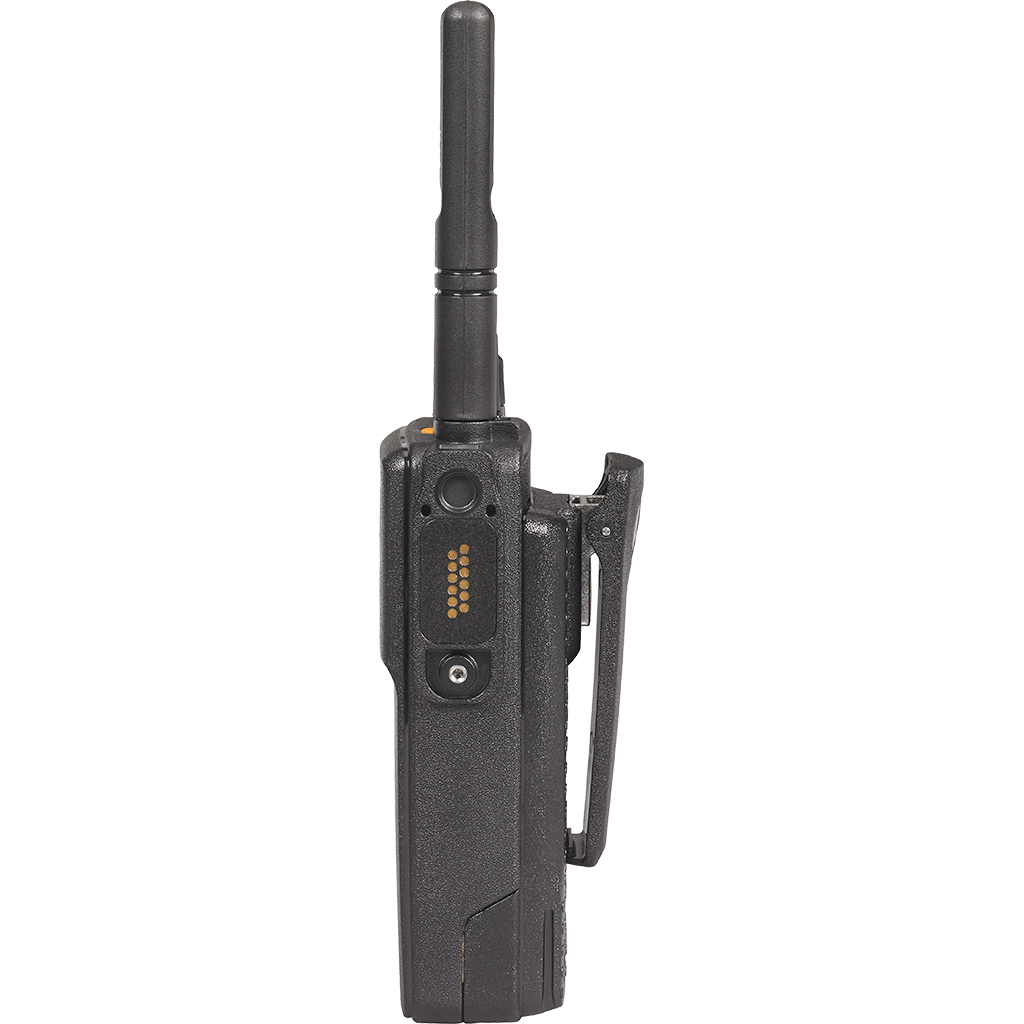

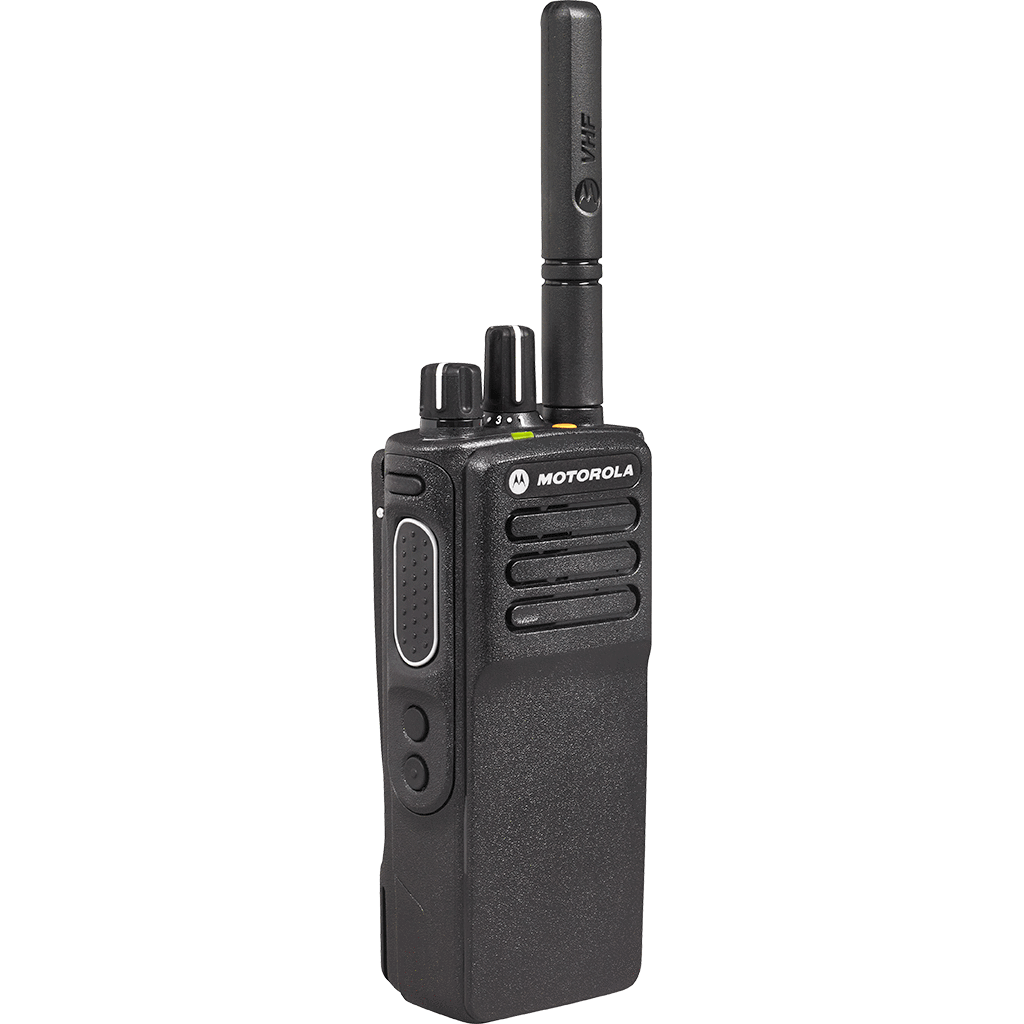

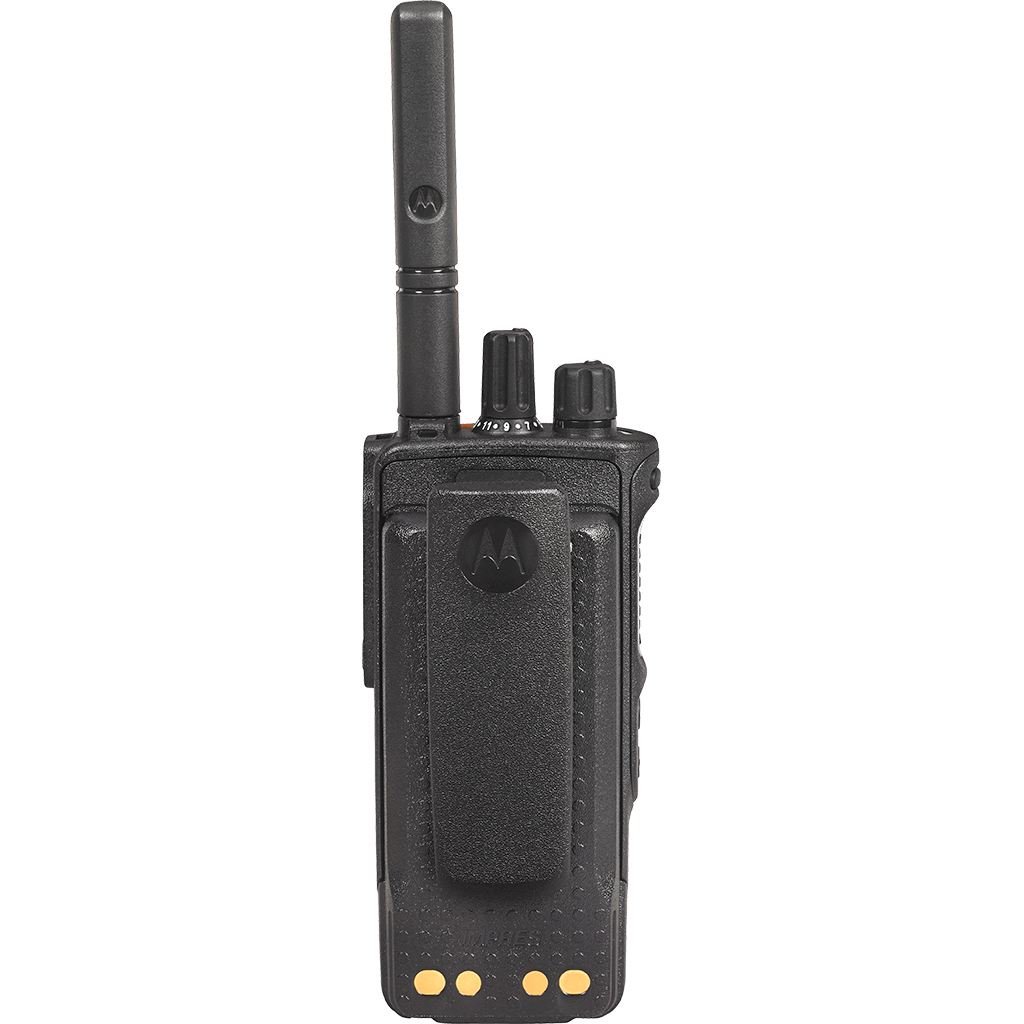

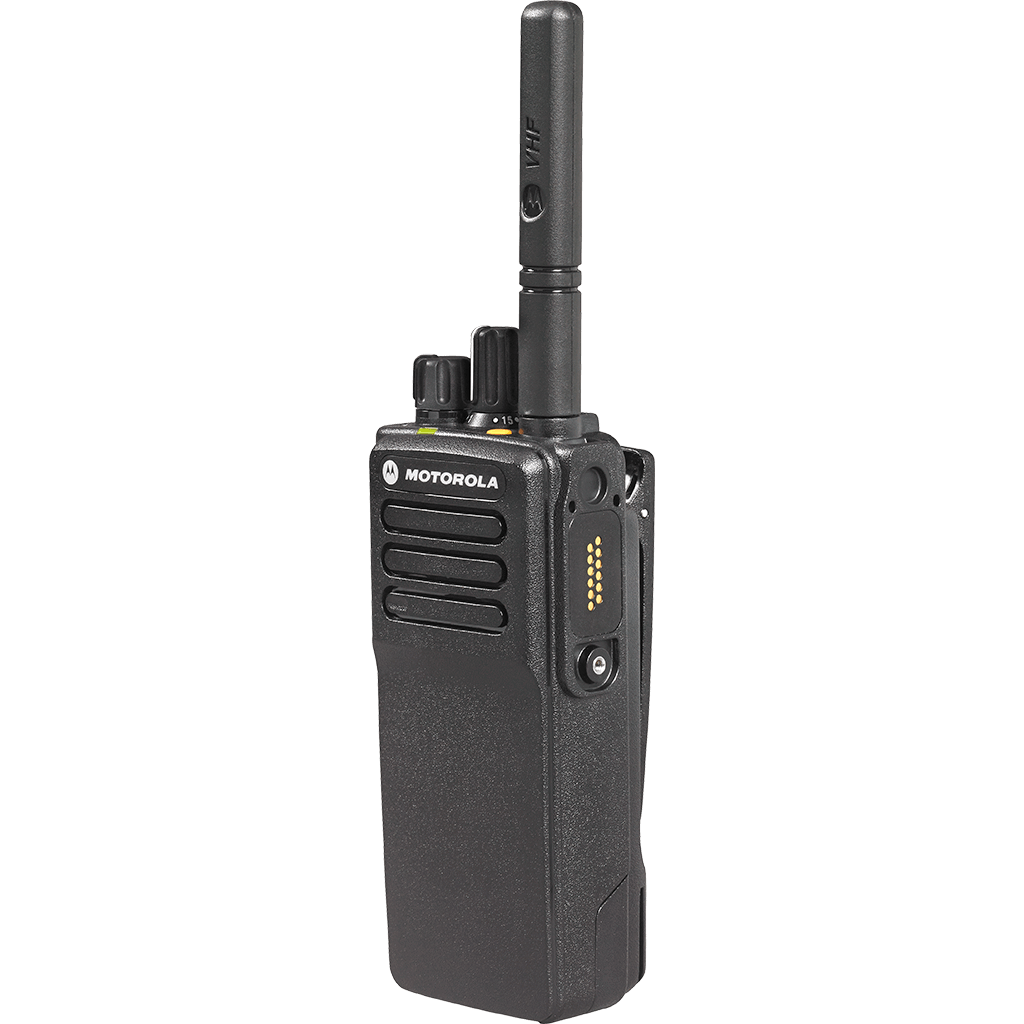

Motorola XPR 7380e

MotorolaSKU: AAH56UCC9RB1AN-UL

Version: DISCONTINUED

Radio programming: Program to match past orders

Variant

Price:

Add to cart or to view price

Quantity:

Shop accessories

This radio has been discontinued by Motorola. The replacement model is the Motorola R7.

The Motorola XPR 7380e radio is a 32 channel handheld unit that is ideal for public safety, hospitality, and security teams. The XPR7380e transmits using digital 800/900 MHz frequencies.

With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The XPR 7000e Series is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organization.

Thinking about upgrading to the XPR7380e from a Motorola XPR6000 series radio? View a PDF detailing the differences between the two generations.

Motorola XPR7380e radio highlights

Digital and analog transmissions
32 channels
800 and 900 MHz frequency bands
2.5 watts max power out
IP68 water and dust proof
21 hours of battery life and up to 28 with hi-cap battery

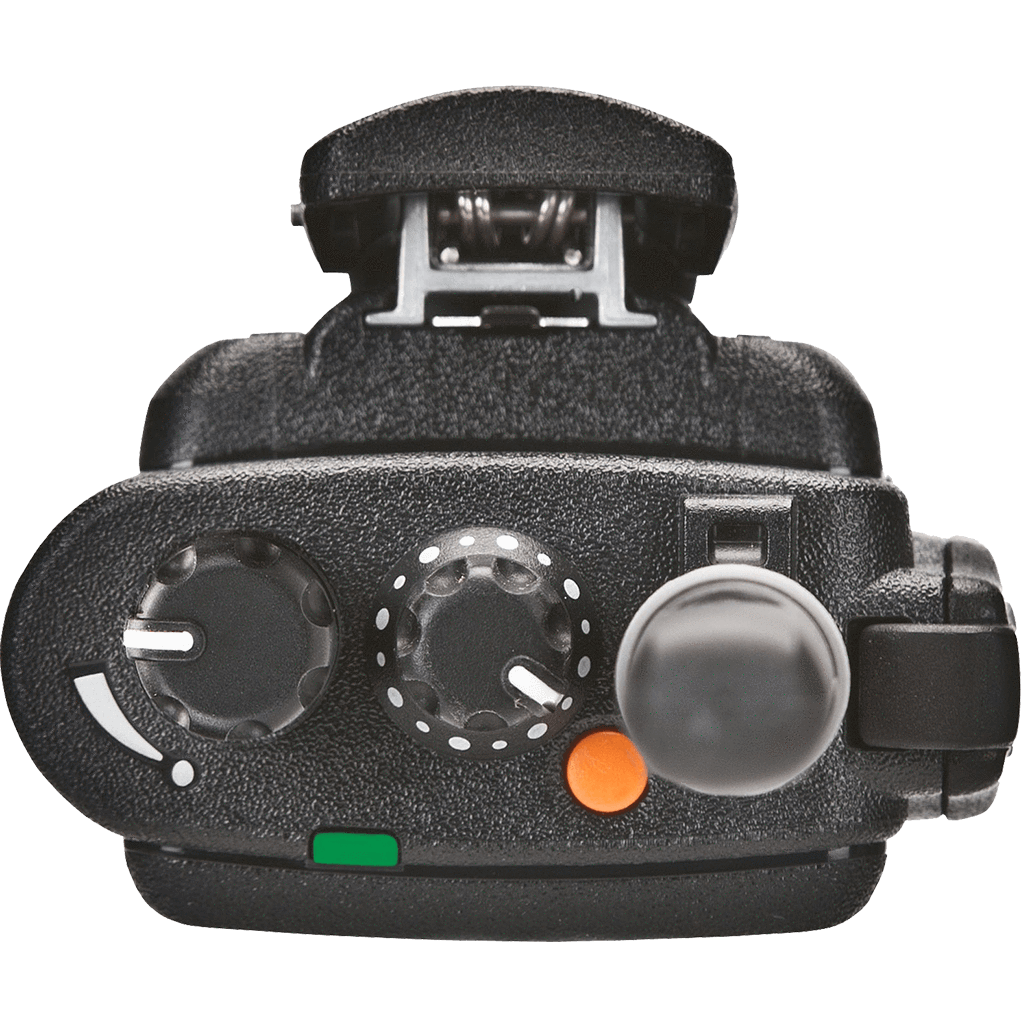

Orange dedicated emergency button
Intrinsically safe option (UL) available
5 year Motorola warranty

Model numbers

800/900 MHz Capable - AAH56UCC9WB1AN

800/900 MHz Enabled - AAH56UCCRB1AN

Supported system technologies

Conventional analog/digital
IP site connect
Capacity plus
Linked capacity plus
Connect plus (enabled version)
Capacity max (enabled version)
Wave OnCloud

Included XPR 7380e accessories

Shop all XPR 7380e radio accessories

800/900 MHz Antenna
Capable Battery	PMNN4491
Enabled Battery	PMNN4493
Belt Clip	PMLN7008

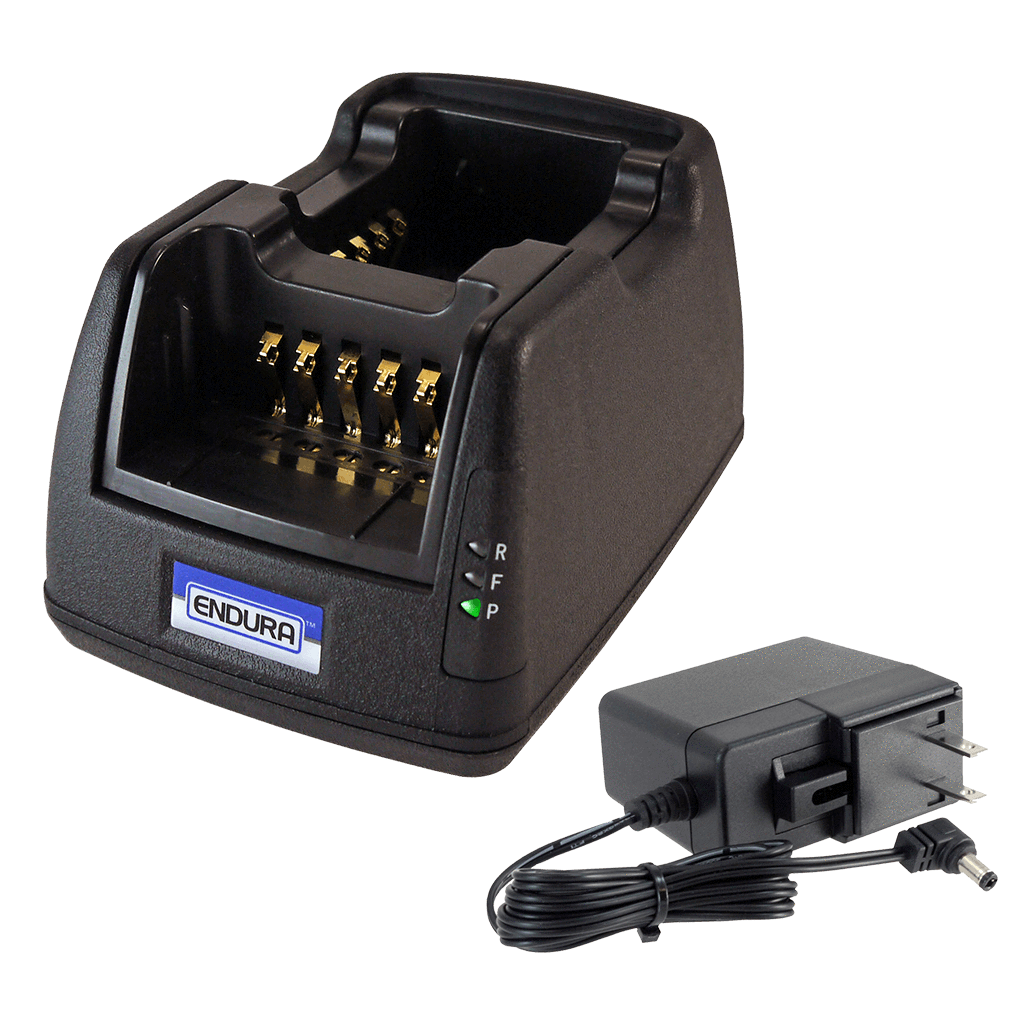

Charger	PMPN4174
Accessory Cover	15012157001

Resources

XPR 7380e specification sheet (PDF file)
XPR 7380e radio user manual (PDF file)

Motorola radios similar to the XPR 7380e

If you aren't sure if the XPR 7380e radio is the right fit, check out our recommended alternatives.

Motorola XPR 7580e | Motorola SL7550e | Motorola DTR700

Free Motorola XPR 7380e radio programming with purchase

Specifications

Dimensions (H x W x D)	5.1 x 2.2 x 1.3 in.
Weight w/capable battery	10 oz.
Weight w/enabled battery	11 oz.
Programmable buttons	3
Emergency button	Yes, orange
User programmable?	No, requires dealer support
Durability	IP68 water/dust proof / Mil spec: 810 D/E
Frequency range	800 MHz (806-825/851-870 MHz) / 900 MHz (896-902/935-941 MHz)
Max Power output	2.5 Watts
Coverage area	Adjustable power output for varying coverage
Bluetooth	2.1 up to 33 feet
Repeater capable	Yes
Estimated battery life	19 hours (Capable) / 28 hours (Enabled)
Capable battery	PMNN4491 Li-ion
Capable battery size	2100 mAh
Enabled battery	PMNN4493
Enabled battery size	3000 mAh
