Motorola-Two-Way Radio-XPR3500e - UHF-With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more efficient. The XPR 3000e Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organization. Need the VHF version? Click to shop XPR3500e - VHF-Radio Depot

Roll over image to zoom in Click on image to zoom

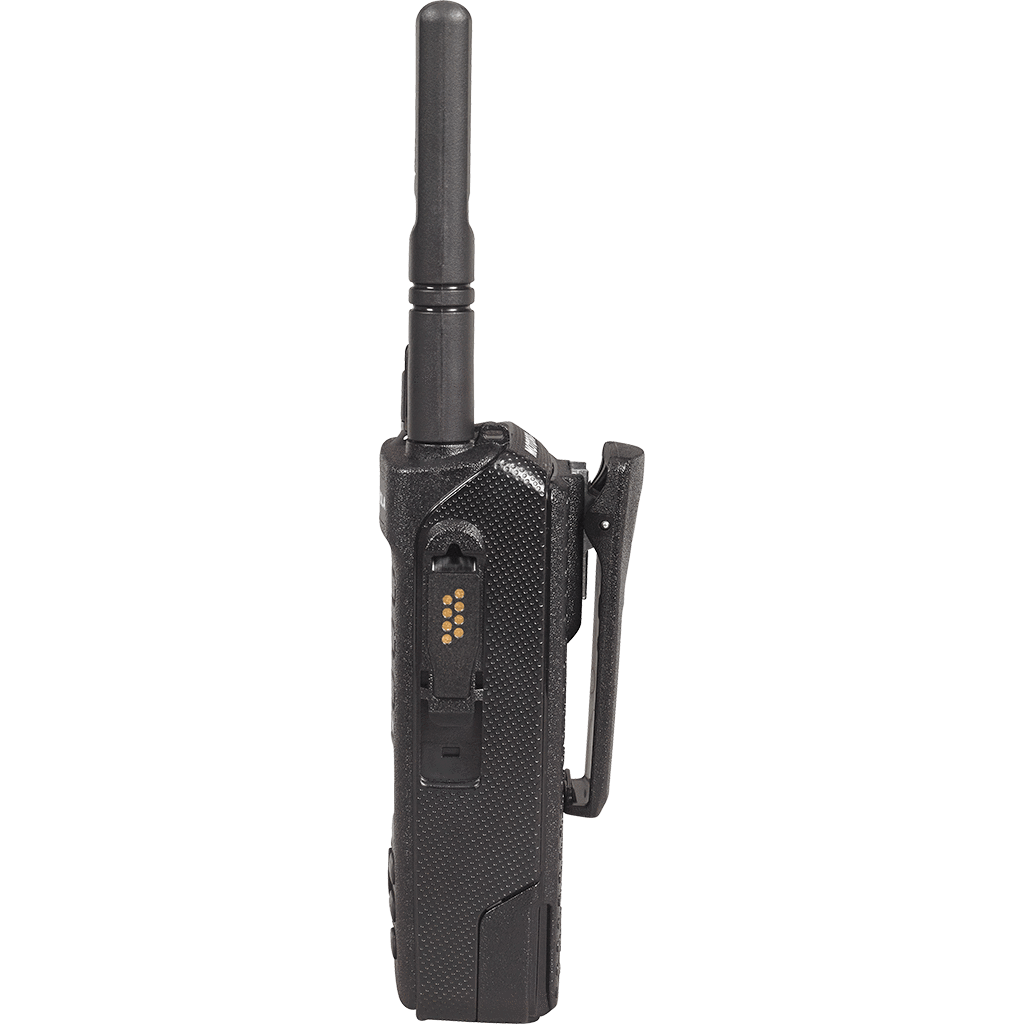

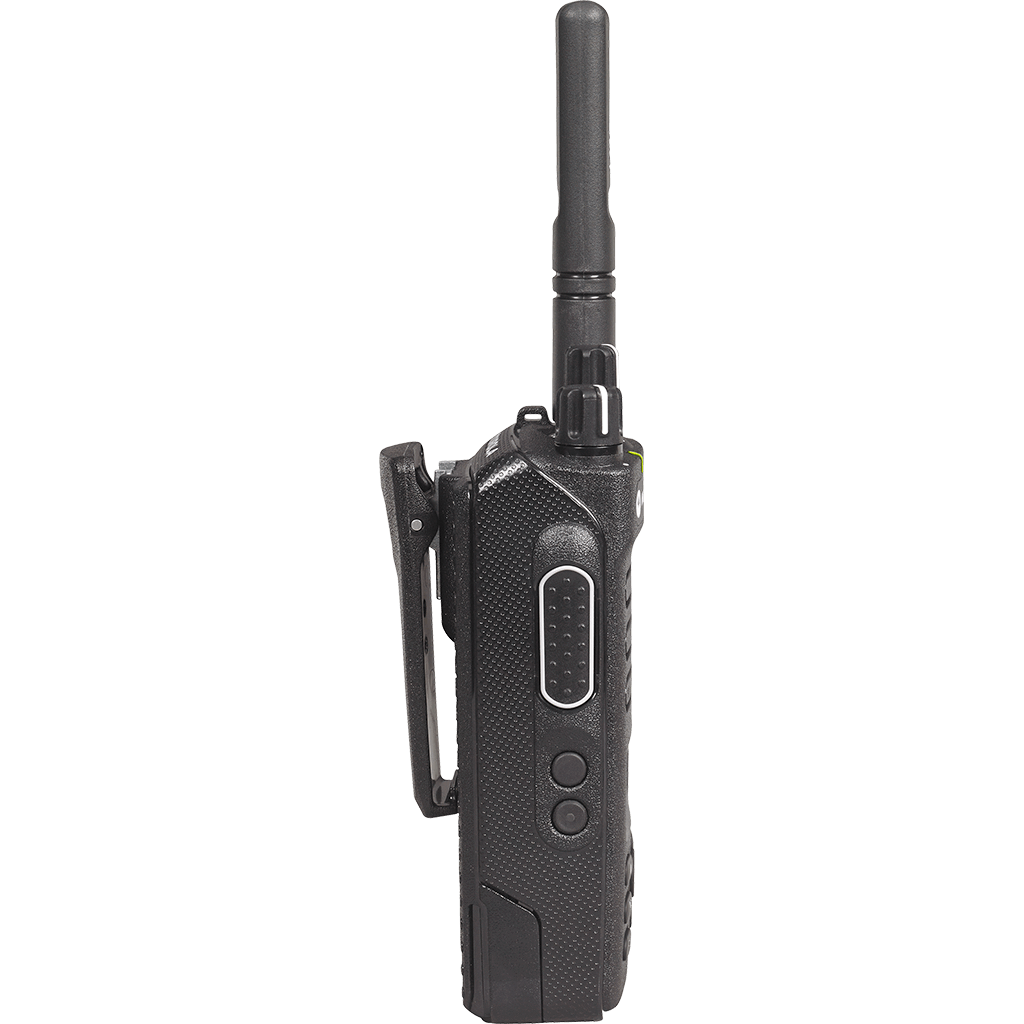

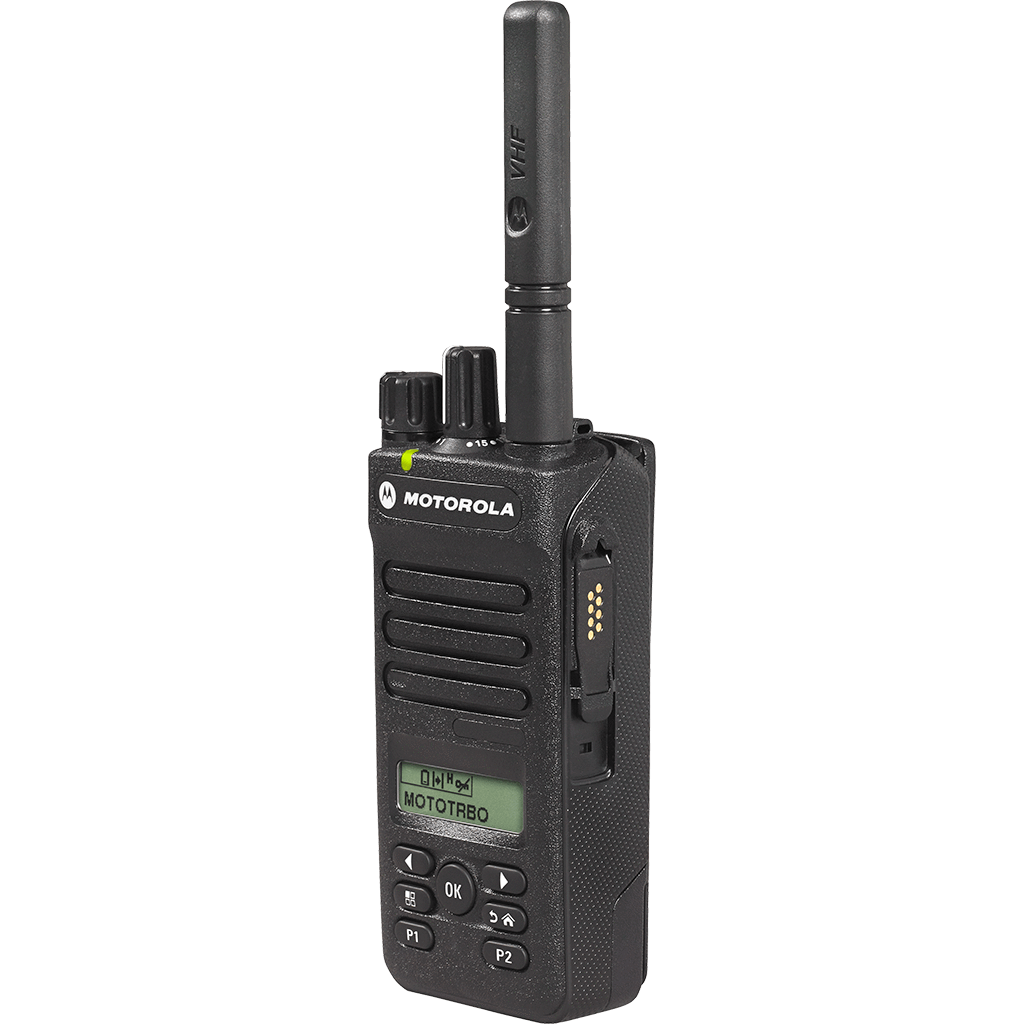

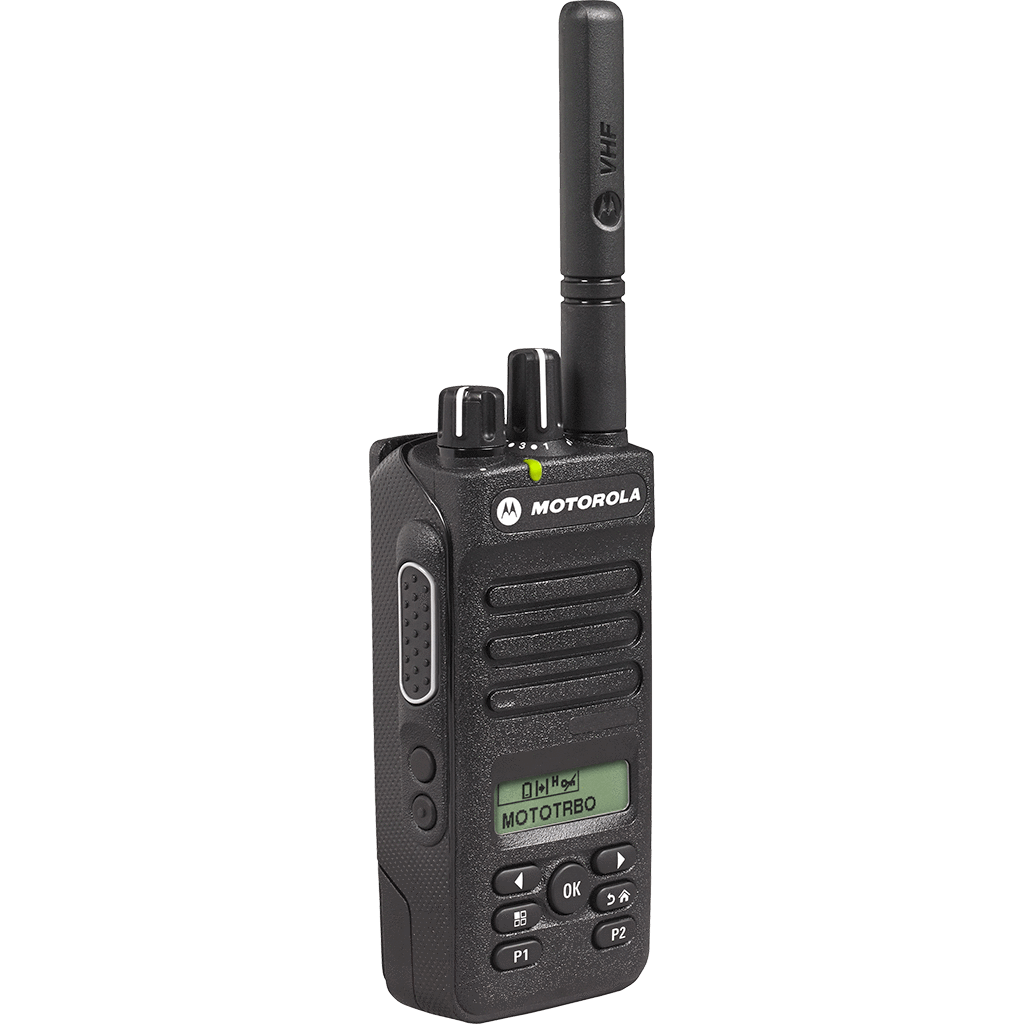

Motorola XPR 3500e

MotorolaSKU: AAH02RDH9VA1AN

Version: AAH02RDH9VA1AN - UHF Digital

Radio programming: Program to match past orders

Variant

Price:

Add to cart or to view price

Quantity:

Shop accessories

NOTE: This radio model has been discontinued by Motorola. The direct replacement is the R5. We will continue to sell this model as long as inventory remains available. Depending on factory inventory levels, the PMNN4544 battery may be shipped with this radio model.

The Motorola XPR 3500e radio is a 128 channel handheld unit that is ideal for manufacturing, construction, utilities, and public safety entities. The XPR 3500e transmits using digital UHF and VHF frequencies, and can be programmed to work with other Motorola, Icom, and Kenwood analog or digital radios.

With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more efficient. The XPR 3000e Series is designed for the everyday worker who needs effective communications.

With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organization.

Motorola XPR3500e radio highlights

Digital and analog transmissions
128 channels
Display and limited keypad
UHF and VHF frequency bands
4 watts (UHF) and 5 watts (VHF) power output
19 hours of battery life and up to 26 with hi-cap battery

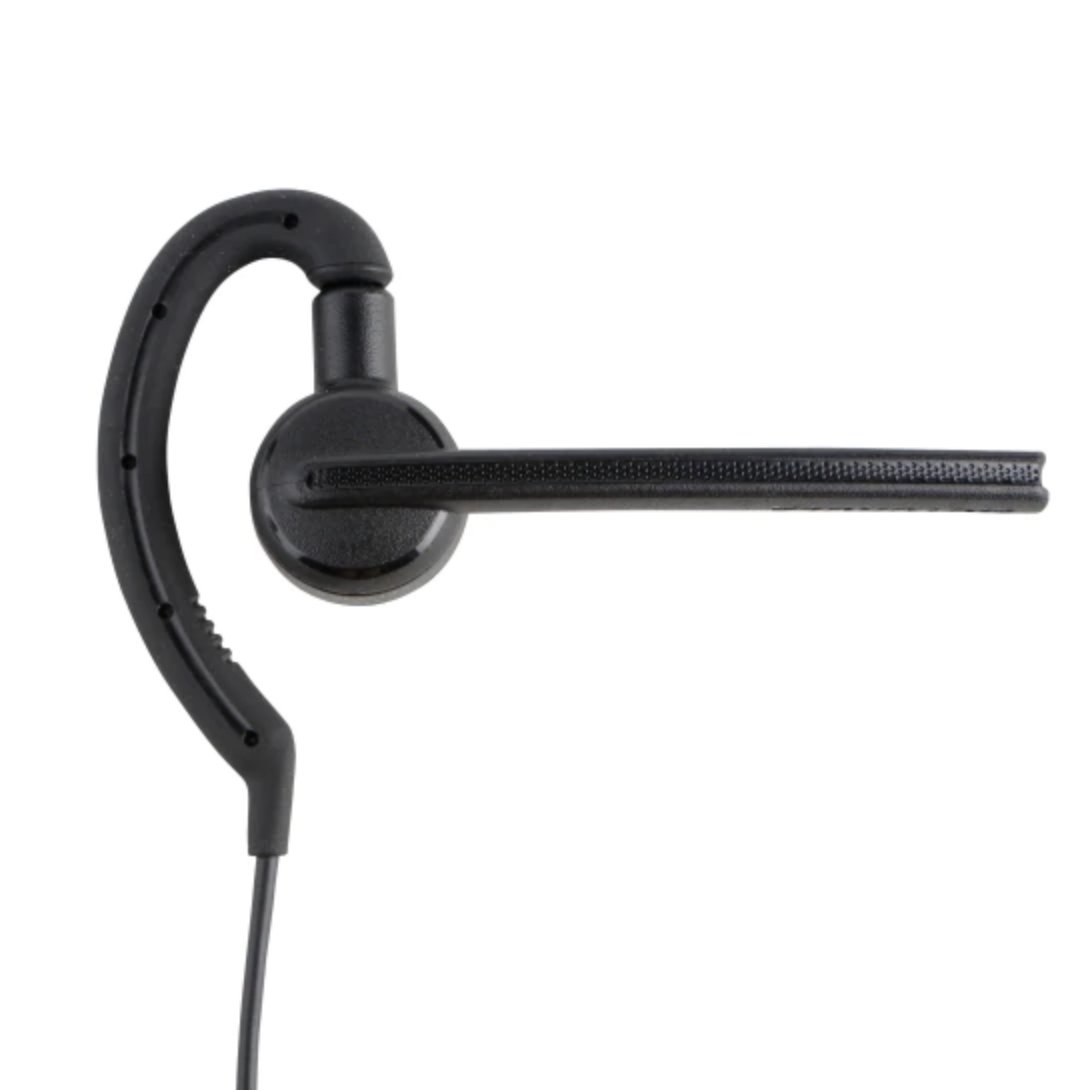

Bluetooth 4.0 up to 33 feet
Intrinsically safe (UL Rated) option available
IP67 waterproof and dust-proof
4 programmable buttons
5 year Motorola warranty

Model numbers

UHF - AAH02RDH9VA1AN

VHF - AAH02JDH9VA1AN

Supported system technologies

Conventional analog/digital
IP site connect (optional add-on)
Capacity plus (optional add-on)
Linked capacity plus (optional add-on)

Included XPR 3500e accessories

Shop all XPR 3500e radio accessories

UHF Antenna	PMAE4079
VHF Antenna	PMAD4116
Battery	PMNN4491
Belt Clip	PMLN4651
Charger	PMPN4174
Accessory Cover	0104058J40

Resources

XPR 3500e specification sheet (PDF file)
XPR 3500e radio user manual (PDF file)

Motorola radios similar to the XPR 3500e

If you aren't sure if the XPR 3500e radio is the right fit, check out our recommended alternatives.

Motorola XPR 3300e | Motorola SL3500e | Motorola XPR 7550e

Free Motorola XPR 3500e radio programming with purchase

Specifications

Dimensions (H x W x D)	4.8 x 2.2 x 1.4 in.
Weight w/battery	10 oz.
Display	Monochrome
Keypad	Limited
Programmable buttons	4
User programmable?	No, requires dealer support
Durability	IP67 waterproof & dust-proof / Mil spec: 810 D/E
Frequency range	UHF (403-527 MHz)VHF (136-174 MHz)
Max Power output	5 Watts (VHF)4 Watts (UHF)
Coverage area	Adjustable power output for varying coverage
Bluetooth	4.0 up to 33 feet
Estimated battery life	19.5 hours (Standard)28.5 hours (Hi-Cap)
Standard battery	PMNN4491 Li-ion
Battery size	2100 mAh

Performance & Range

Flat open terrain	UHF 4-6 miles / VHF 5-7 miles
Suburban areas	UHF 3-5 miles / VHF 2-4 miles
Urban areas	UHF 1-3 miles / VHF 0.5-1 miles
Inside buildings	UHF 25-30 floors / VHF 10-15 floors
