Motorola R7

MotorolaSKU: AAH06RDN9WA1AN

Price:
Add to cart or to view price
Shop accessories

Description

The Motorola R7 radio is a 64 or 1000 channel handheld unit that is ideal for public safety, oil and gas, mining, and manufacturing industries. The R7 radio is slated to replace the Motorola XPR 7550e as the top of the line commercial portable radio.

The R7 is a digital portable radio using UHF, VHF or 800/900 frequencies that offers game-changing audio capabilities in a rugged, future-ready device. Its advanced audio processing ensures that your communications are loud and clear, while its rugged construction is ready for harsh environments. Always be heard with a built in speaker capable of delivering a loudness factor of 102 phons, four times louder than a shouting conversation.

Each version of the R7 radio includes GPS, emergency button, Bluetooth 5.2, 3rd party applications and more. Connect to your existing fleet with the ability to connect to any Motorola infrastructure such as IP Site Connect, Capacity Plus, or Capacity Max.

Motorola R7 radio highlights

  • Digital and analog transmissions

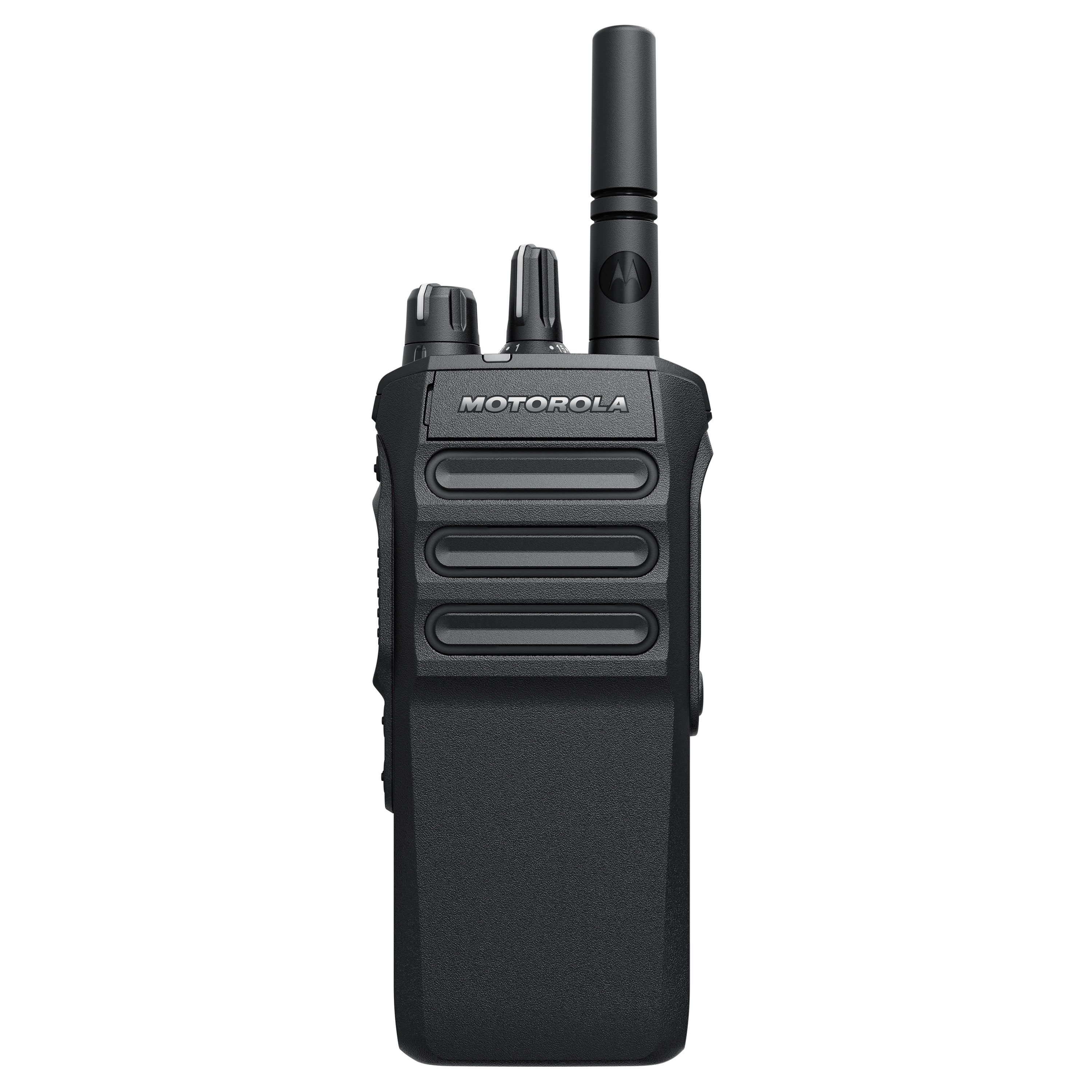

  • 1000 channels (display) or 64 channels (non-display)
  • UHF, VHF and 800/900 frequency bands
  • 4 watts (UHF), 5 watts (VHF) and 2.5 watts (800/900) max power output
  • IP68 water and dust proof
  • Easy to manage 10 oz weight for non-display model (11 oz w/display)
  • 19 hours of battery life with up to 25 using a high capacity battery

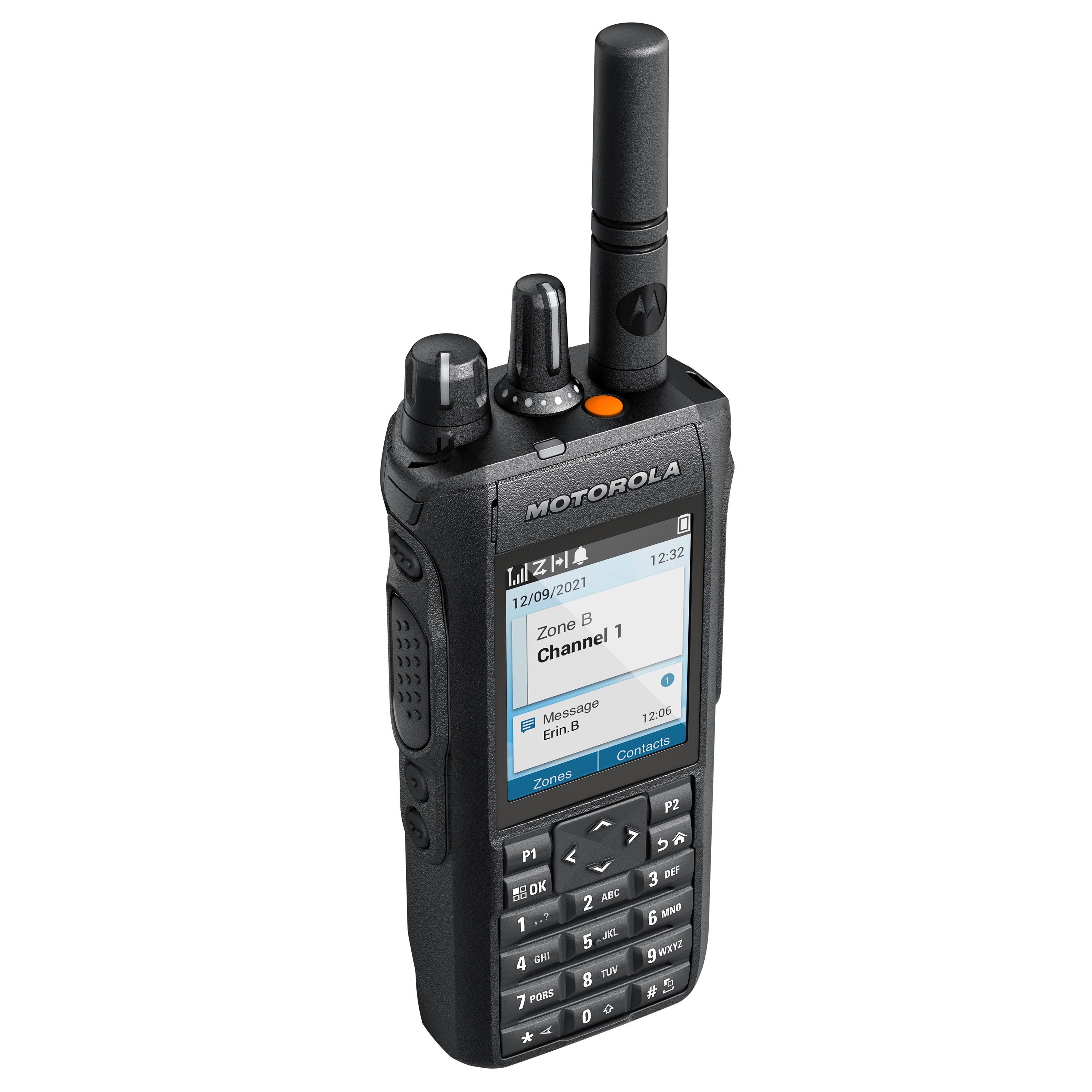

  • Full color display w/full keypad

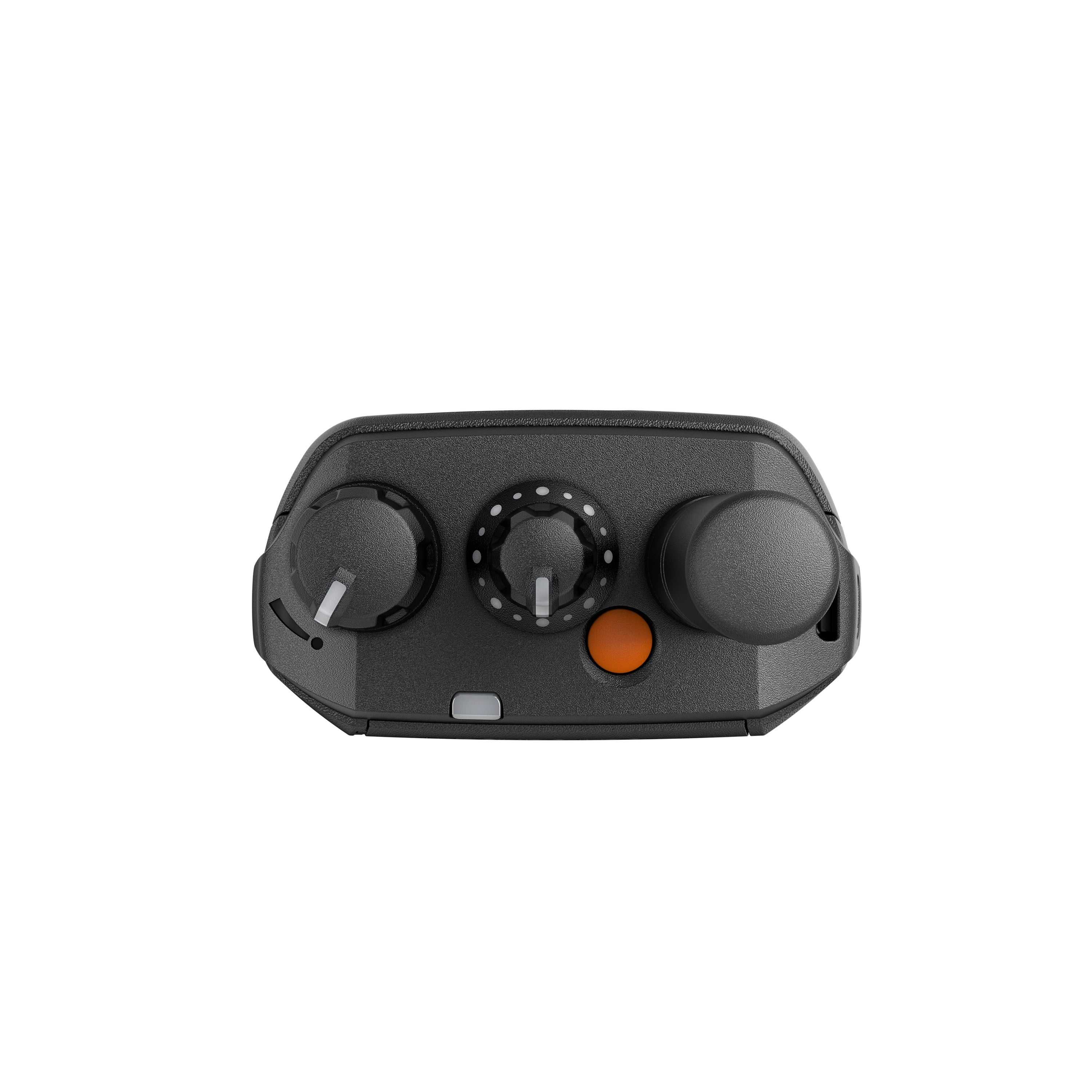

  • Orange dedicated emergency button
  • Intrinsically safe option (UL) available
  • 5 year Motorola warranty

Model numbers

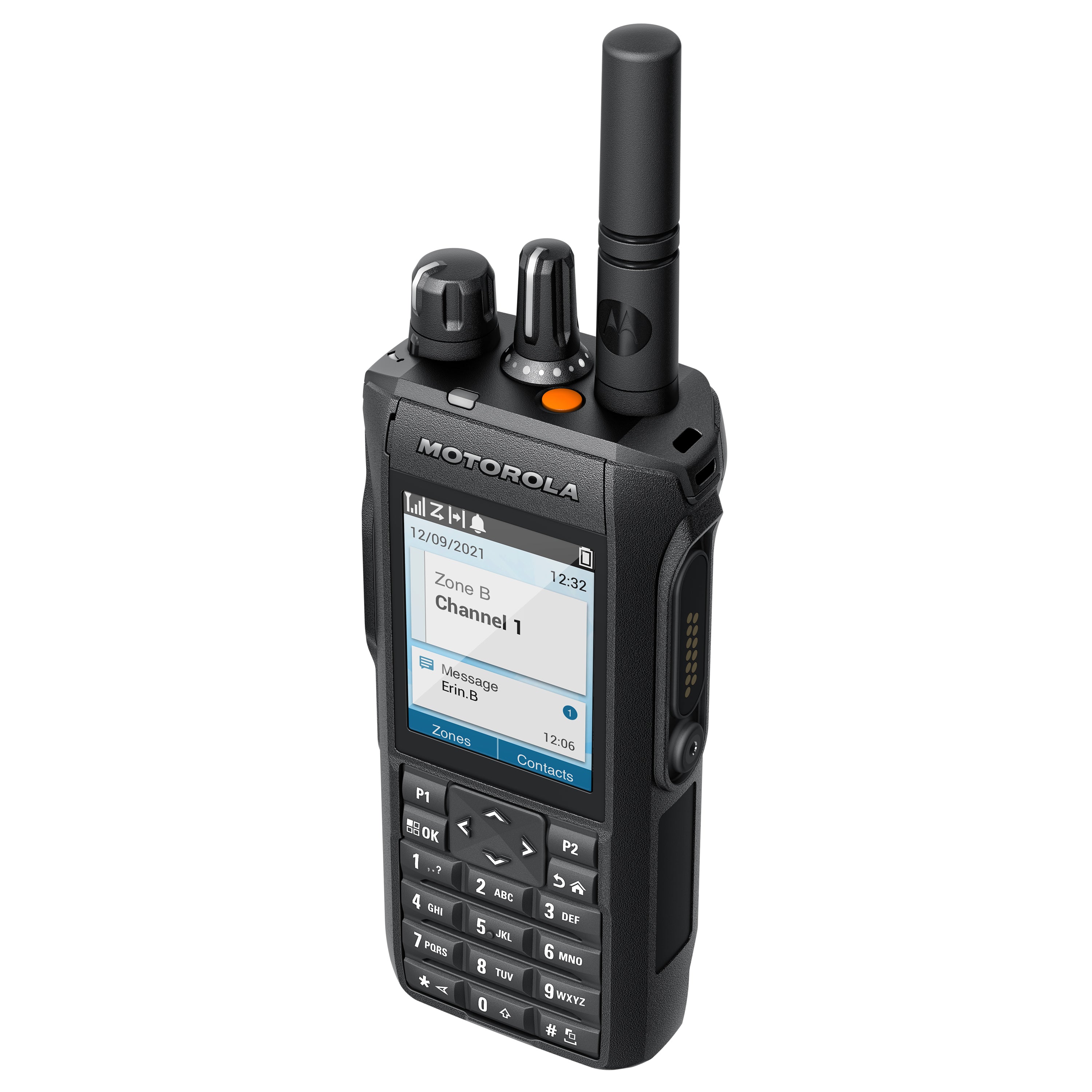

Display version
UHF Capable - AAH06RDN9WA1AN
UHF Enabled - AAH06RDN9RA1AN
VHF Capable - AAH06JDN9WA1AN
VHF Enabled - AAH06JDN9RA1AN
800/900 Capable - AAH06UCN9WB1AN
800/900 Enabled - AAH06UCN9RB1AN

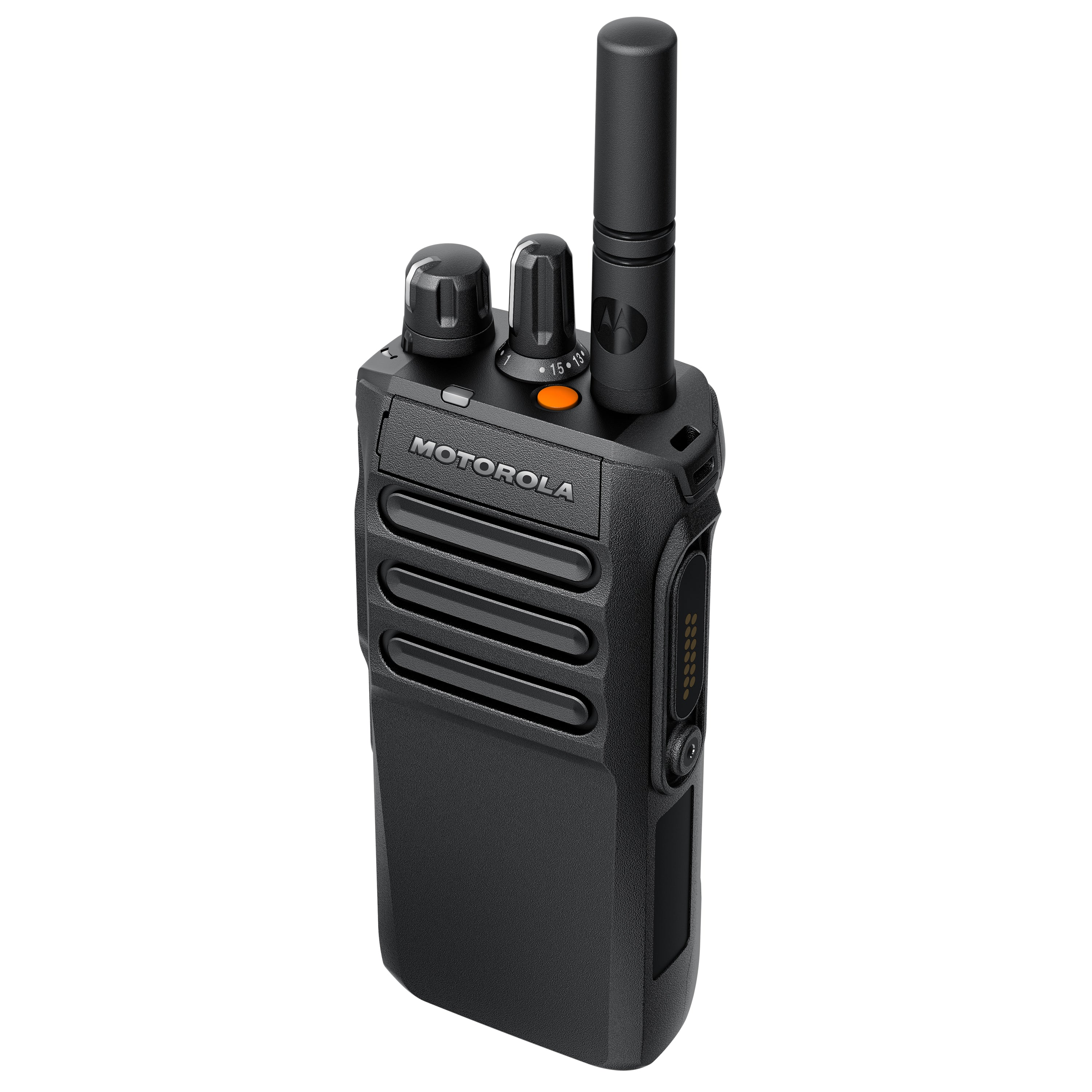

Non-display version
UHF Capable - AAH06RDC9WA1AN
UHF Enabled - AAH06RDC9RA1AN
VHF Capable - AAH06JDC9WA1AN
VHF Enabled - AAH06JDC9RA1AN
800/900 Capable - AAH06UCC9WB1AN
800/900 Enabled - AAH06UCC9RB1AN

Supported system technologies

  • Conventional analog/digital
  • IP site connect
  • Capacity plus
  • Linked capacity plus
  • Capacity max (enabled version add-on)

Included R7 accessories

Shop all R7 radio accessories

UHF Antenna PMAE4079
VHF Antenna PMAD4118
Capable Battery PMNN4807

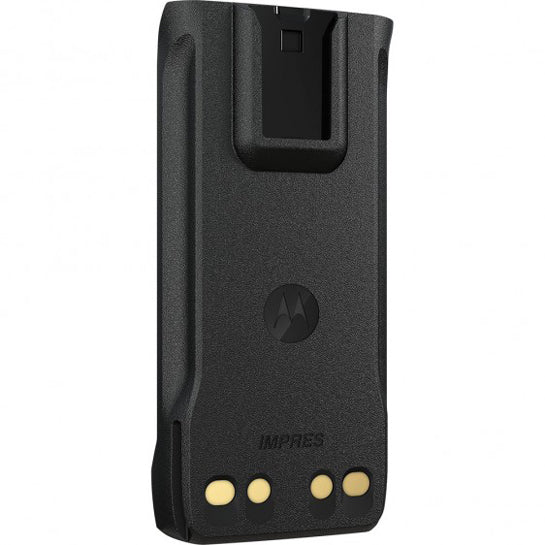

Enabled Battery PMNN4809
Belt Clip PMLN4651

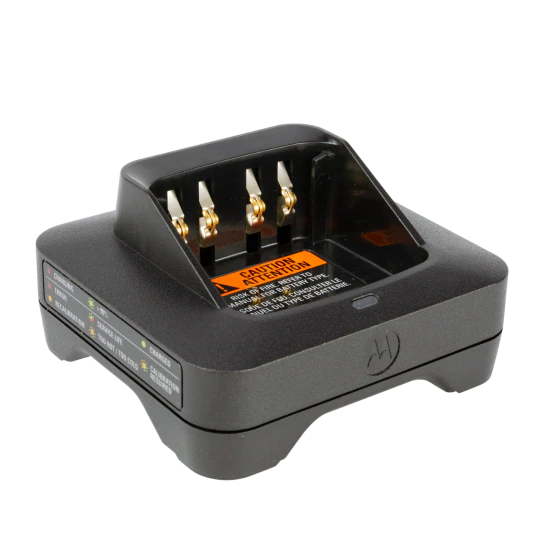

Charger PMPN4576
Accessory Cover PMHN4429

Resources

Radios similar to the R7

If you aren't sure if the R7 radio is the right fit, check out our recommended alternatives.


    Free Motorola R7 radio programming with purchase (up to 16 CH)

    Motorola R7 Information

    Specifications

    Dimensions (H x W x D) 5.2 x 2.2 x 1.4 in.
    Display model weight w/capable battery 11 oz.
    Display model weight w/enabled battery 12 oz.
    Non-display model weight w/capable battery 10 oz.
    Non-display model weight w/enabled battery 11 oz.
    Display Full color
    Keypad Full
    Programmable buttons 6 (display)4 (non-display)
    Emergency button Yes, orange
    User programmable? No, requires dealer support
    Durability IP68 water/dust proof / Mil spec: 810D/E
    Frequency range UHF (400-527 MHz) / VHF (136-174 MHz)
    Max Power output 4 Watts (UHF) / 5 Watts (VHF)
    Coverage area Adjustable power output for varying coverage
    Bluetooth Yes - 5.2
    Bluetooth range Class 2, up to 33 feet
    Digital battery life 19 hours (included battery) / 25 hours (high cap battery) / 28 hours (UL battery)
    Analog battery life 14.5 hours (included battery) / 19 hours (high cap battery) / 21.5 hours (UL battery)
    Capable battery PMNN4807
    Capable battery size 2,200 mAh
    Enabled battery PMNN4809
    Enabled battery size 2,850 mAh
    UL battery PMNN4810
    UL battery size 3,200 mAh

    Performance & Range

    Flat open terrain UHF 4-6 miles / VHF 5-7 miles
    Suburban areas UHF 3-5 miles / VHF 2-4 miles
    Urban areas UHF 1-3 miles / VHF 0.5-1 miles
    Inside buildings UHF 25-30 floors / VHF 10-15 floors
