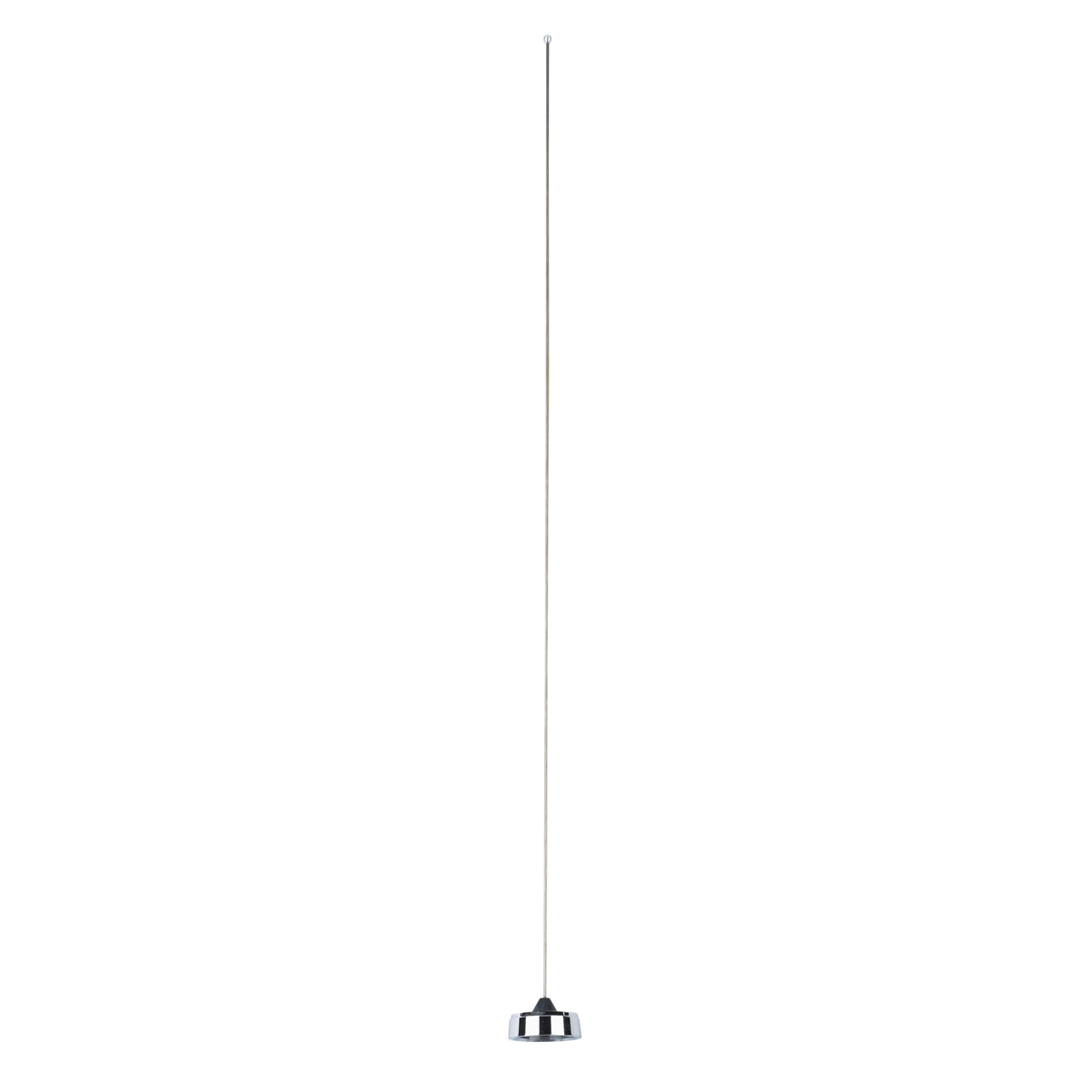

The Motorola HAD4009 is a low-profile VHF (162 - 174 MHz), ¼ wave roof mount antenna. It is compatible with Motorola CM200D, CM300D, XPR 2500, XPR 5350e, and XPR 5550e mobile radios as well as several Icom and APX models.
The HAD4009 has a signal that radiates vertically, making it ideal for urban environments where buildings can obstruct the signal.
This antenna requires either a 3/4" hole be drilled on the roof of the vehicle or a right-angle mounting bracket with a 3/4" hole must be used to mount the antenna. Included with the HAD4009 is approximately 12 feet of coax and a loose Mini-UHF male connector that will need to be crimped on the coax.
NOTE: VX2100 / VX2200 mobile radios and all ICOM mobile radios using this antenna also require the 44203 adapter
Motorola HAD4009 Antenna Highlights
- 1/4 Wave
- Low Profile
- Vertically radiating signal
- Utilizes VHF (162 - 174 MHz)
- 1 year Motorola warranty
HAD4009 Specifications
| Weight (lbs) |
0.61 |
| Dimensions (H) |
17 in. |
| Frequency Band |
VHF |
| Frequency Range |
162 - 174 MHz |
| GPS Capable |
No |
| Antenna Type |
1/4 Wave |
| Type or Style |
Mobile Antenna |
| Mounting Style |
Through-Hole |
| Color |
Chrome |
| Warranty |
1 Year Manufacturer’s Warranty |
