NOTE: THIS RADIO HAS BEEN DISCONTINUED. THE REPLACEMENT RADIO IS THE CP100D.

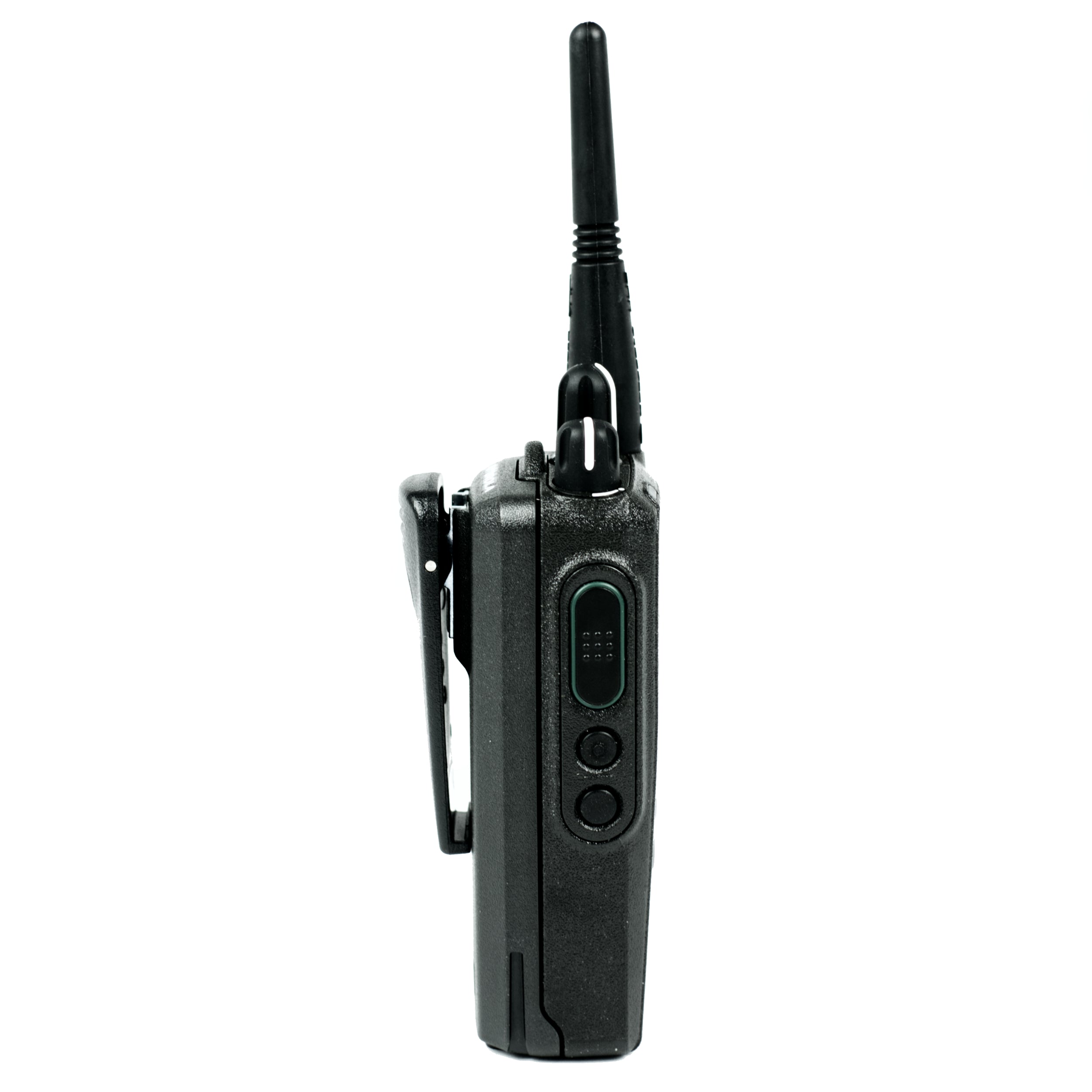

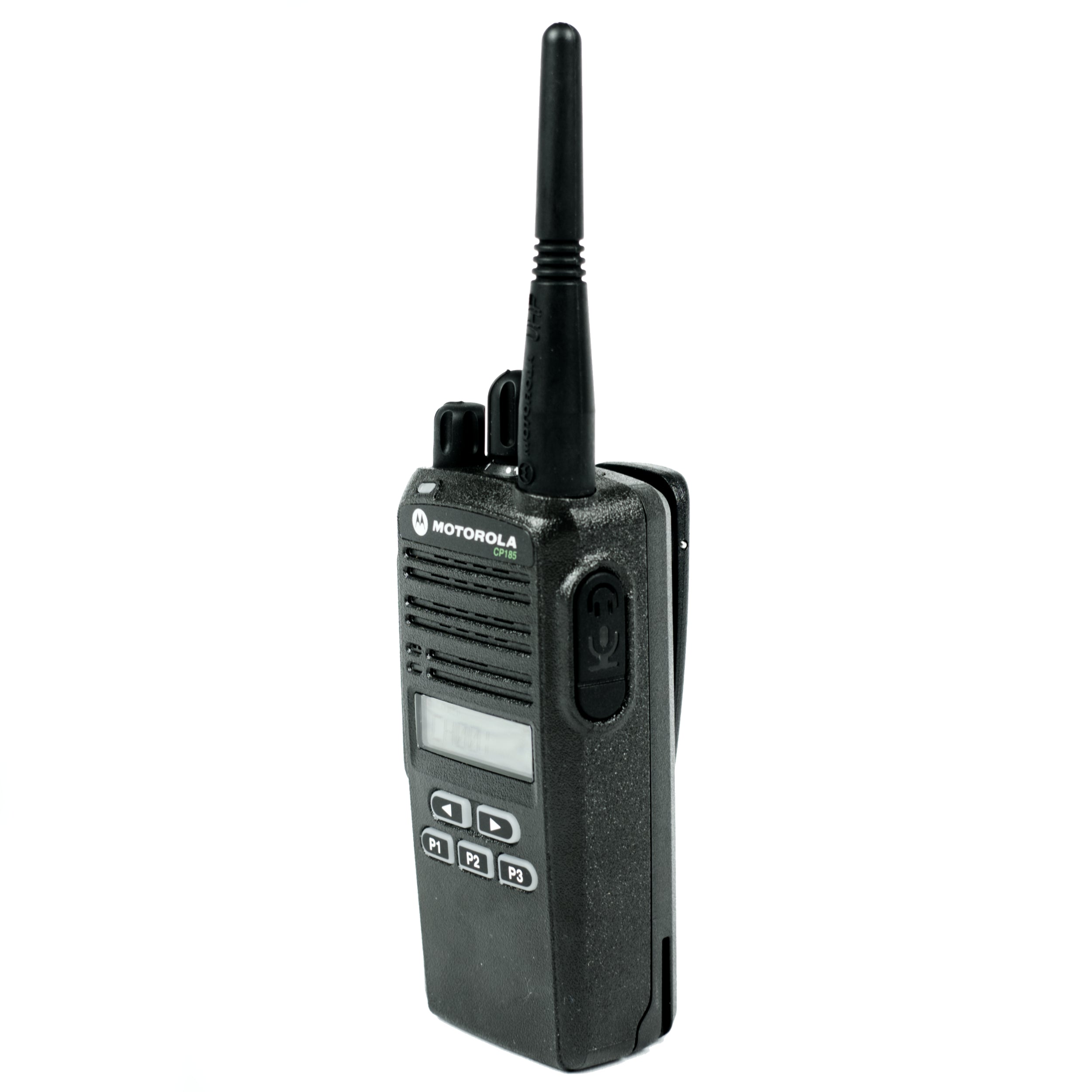

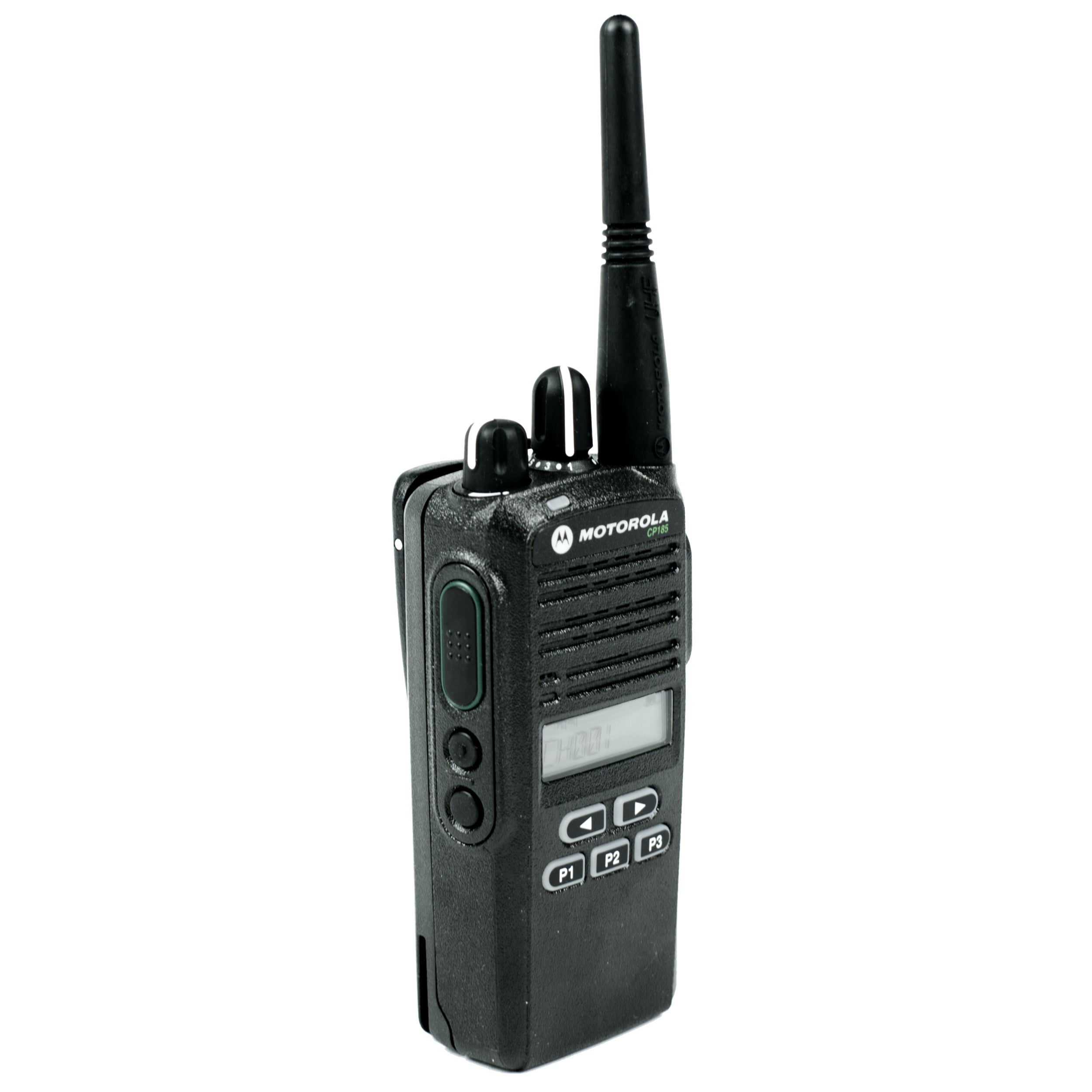

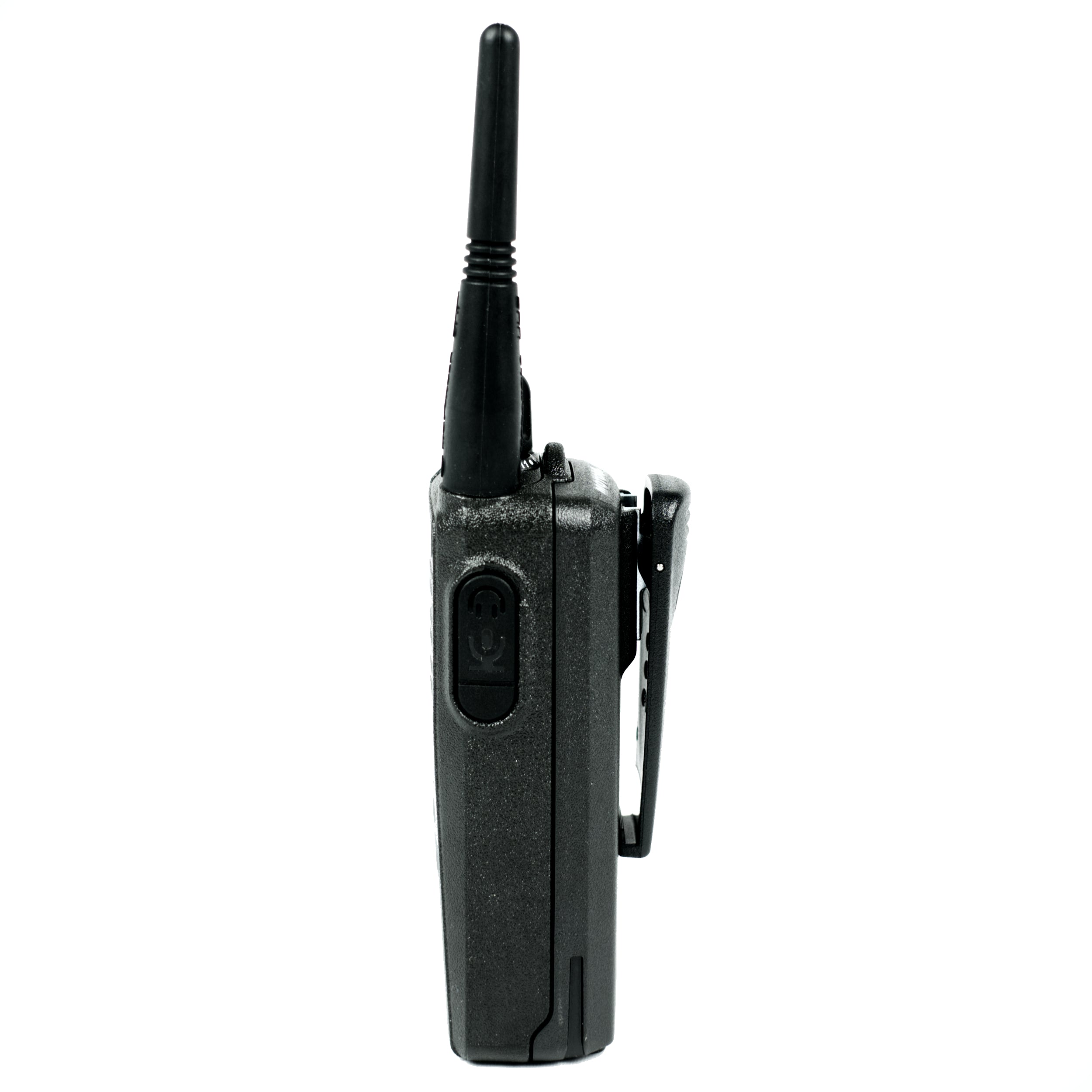

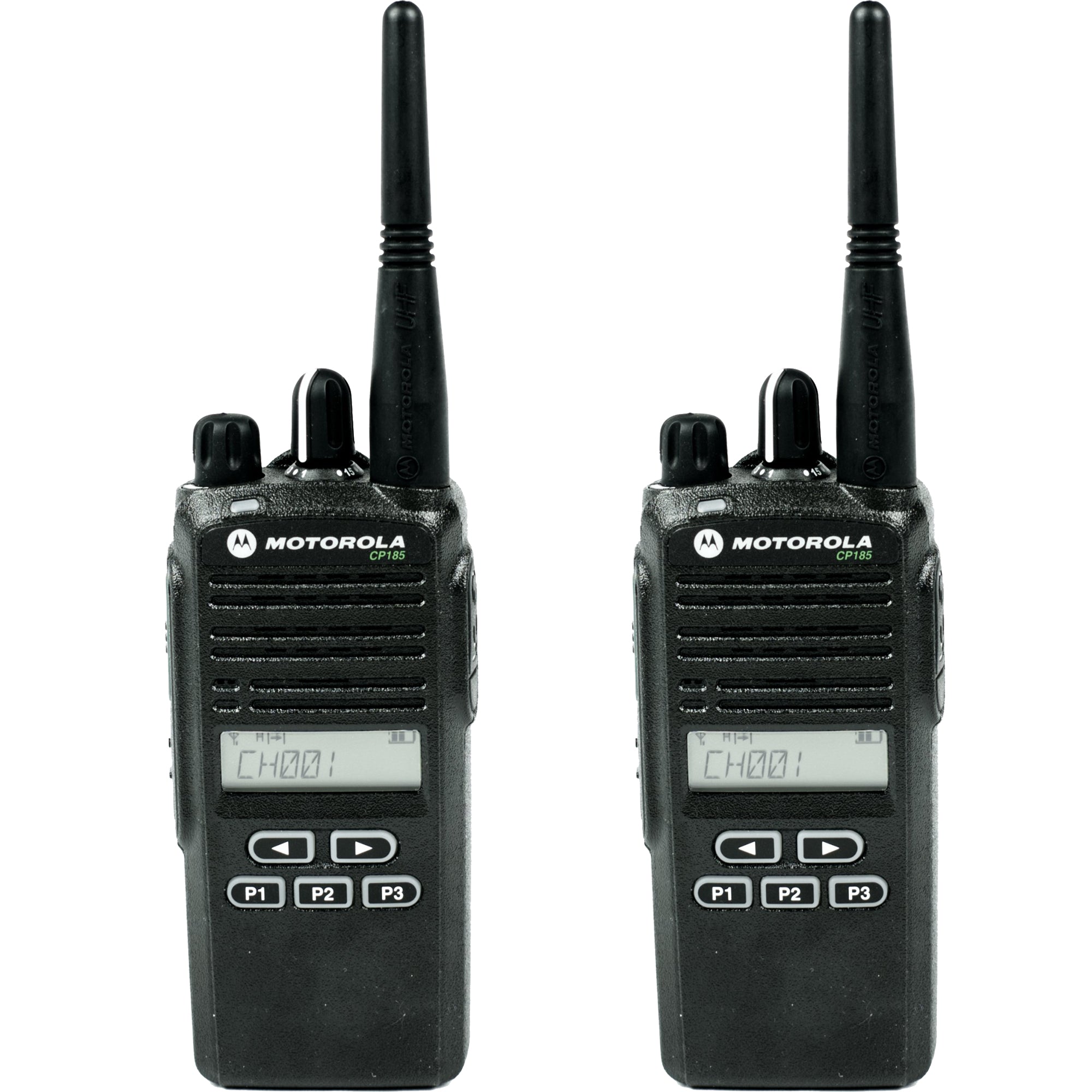

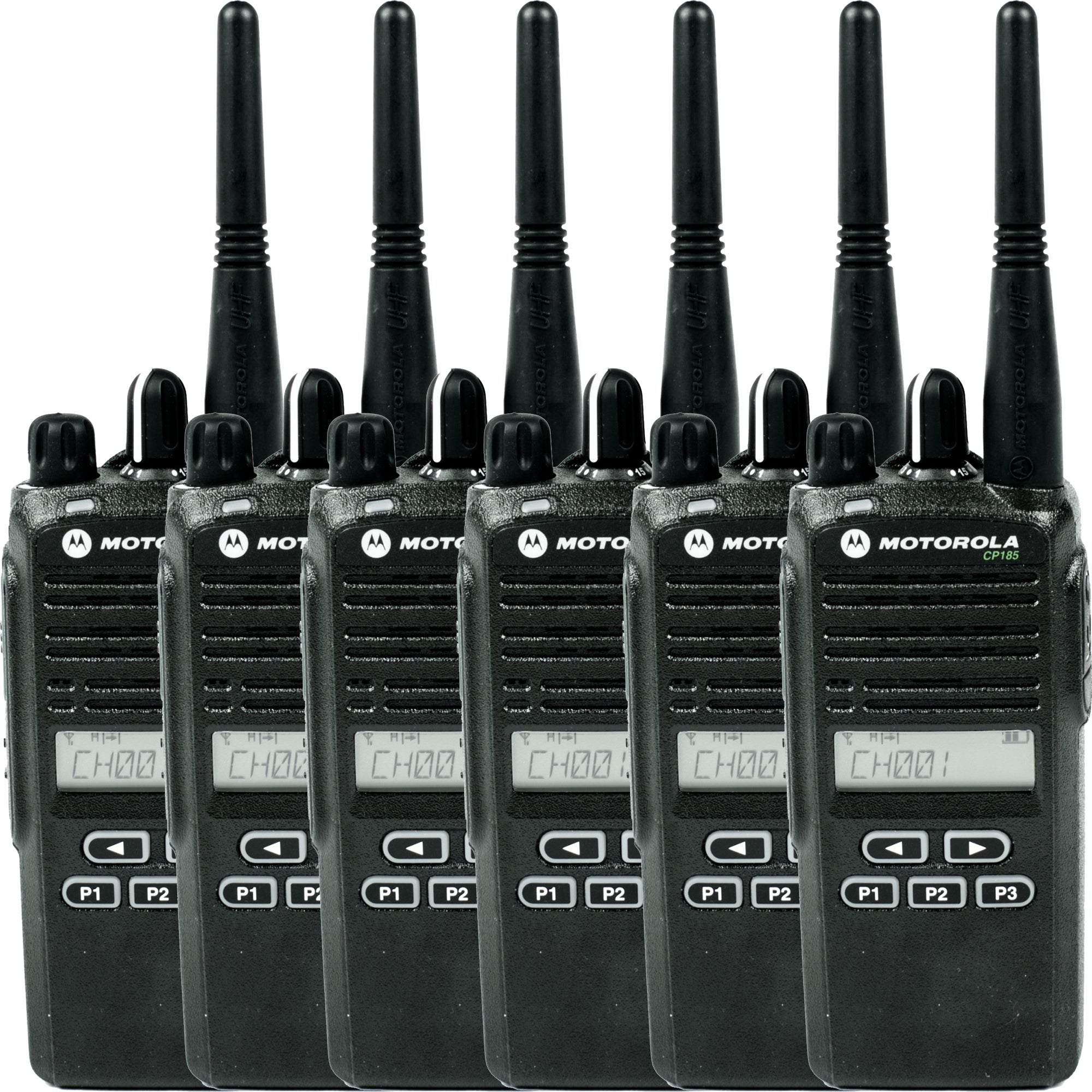

The Motorola CP185 radio is a 16 channel handheld unit that is ideal for educational institutions, retail, and hospitality businesses. The CP185 transmits using analog UHF or VHF frequencies, and can be programmed to work with other Motorola, Icom, and Kenwood analog radios.
The Motorola CP185 includes a monochrome display, so your channels can be named to help cut down on employee confusion. There are 5 dealer programmable buttons that can be set to features such as: backlight ON/OFF toggle, keypad lock, power level, monitor, volume set, and more.
Motorola CP185 radio highlights
- Analog only transmissions
- 16 channels
- Monochrome display
- UHF (435-480 MHz) or VHF (136-174 MHz*) frequency bands
- 4 Watts (UHF) or 5 Watts (VHF) max power output

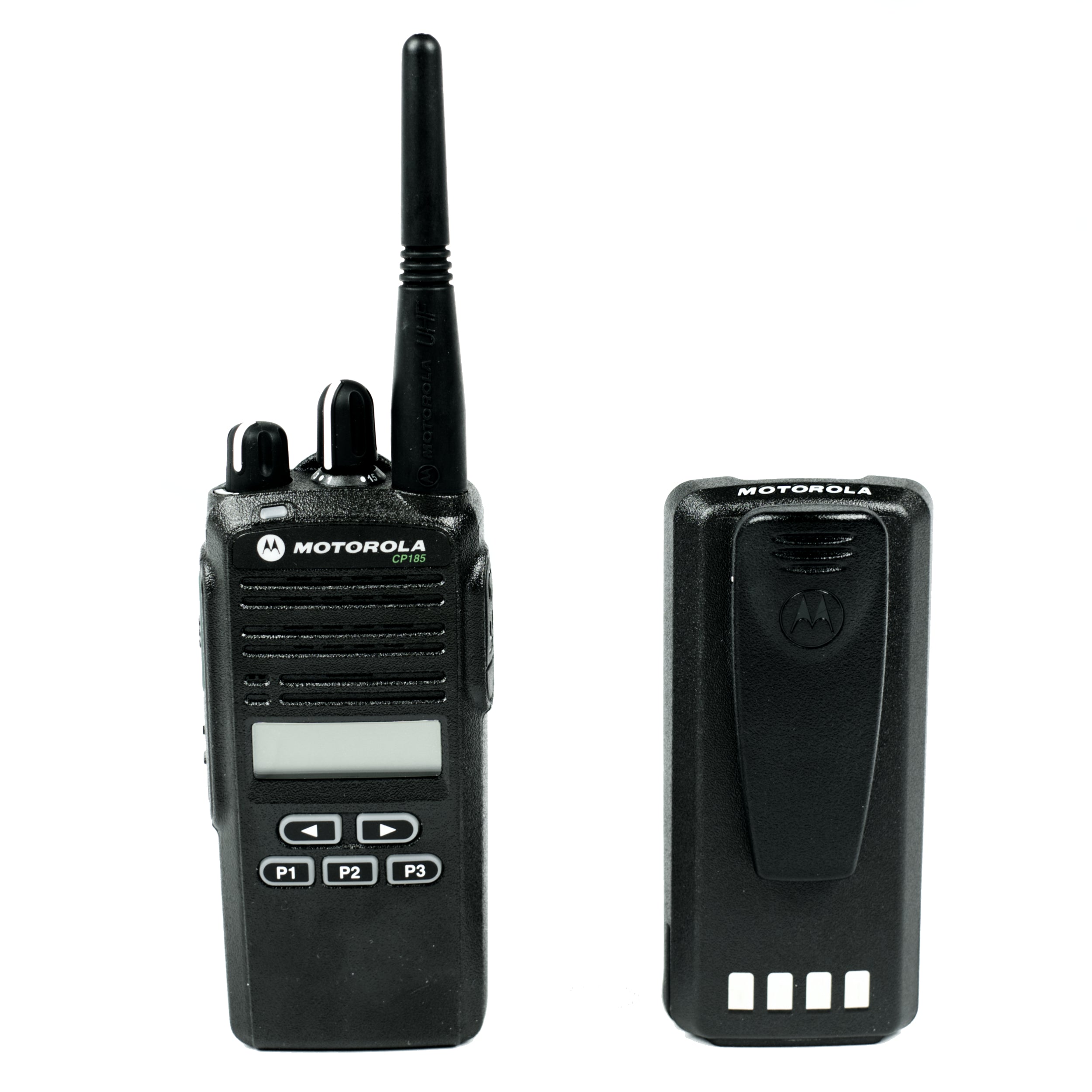

- 11 hours battery life and up to 16 with hi-cap battery
- 5 programmable buttons
- 2 year Motorola warranty
Model numbers
UHF - AAH03RDF8AA7AN
VHF - AAH03KEF8AA7AN
Supported system technologies
Conventional analog

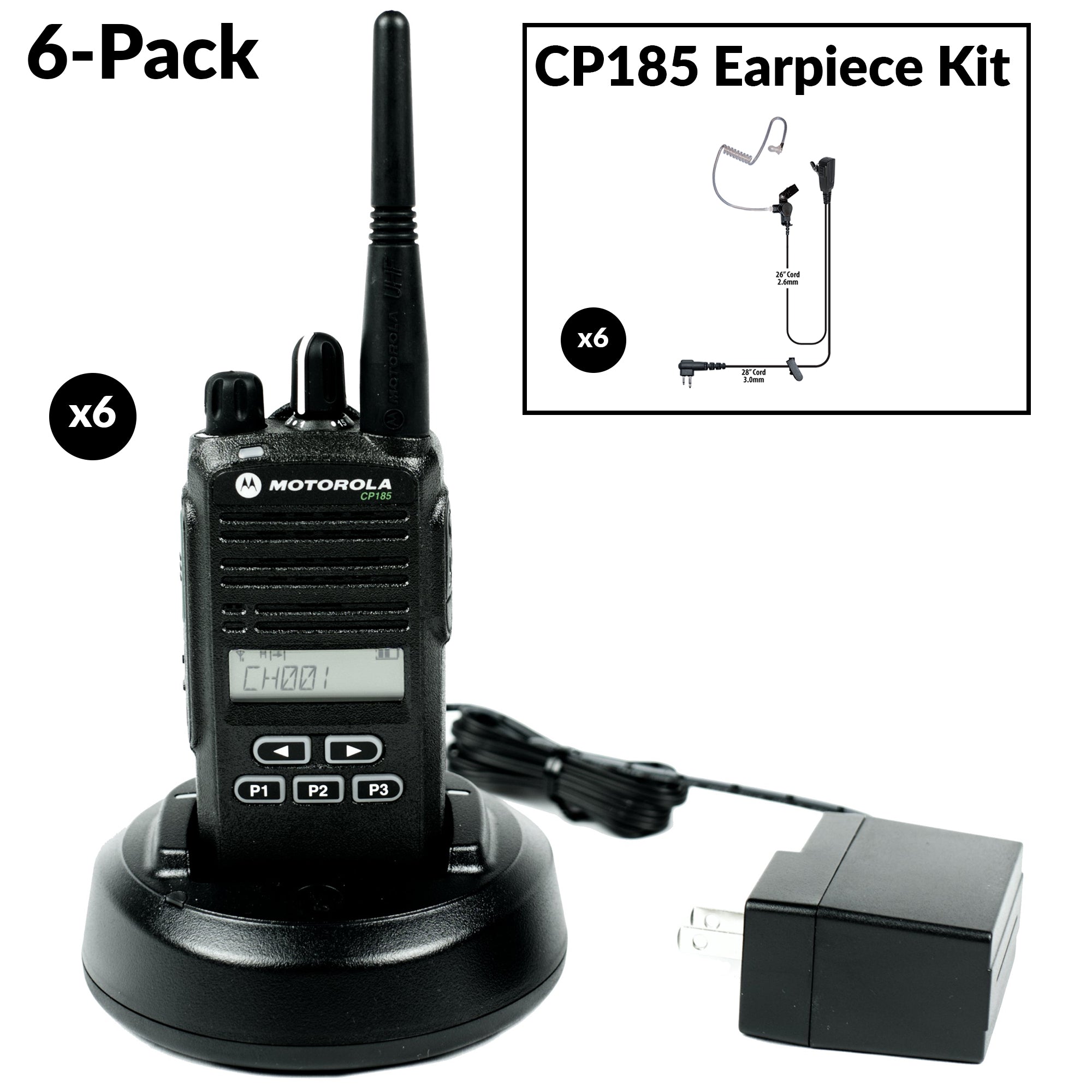

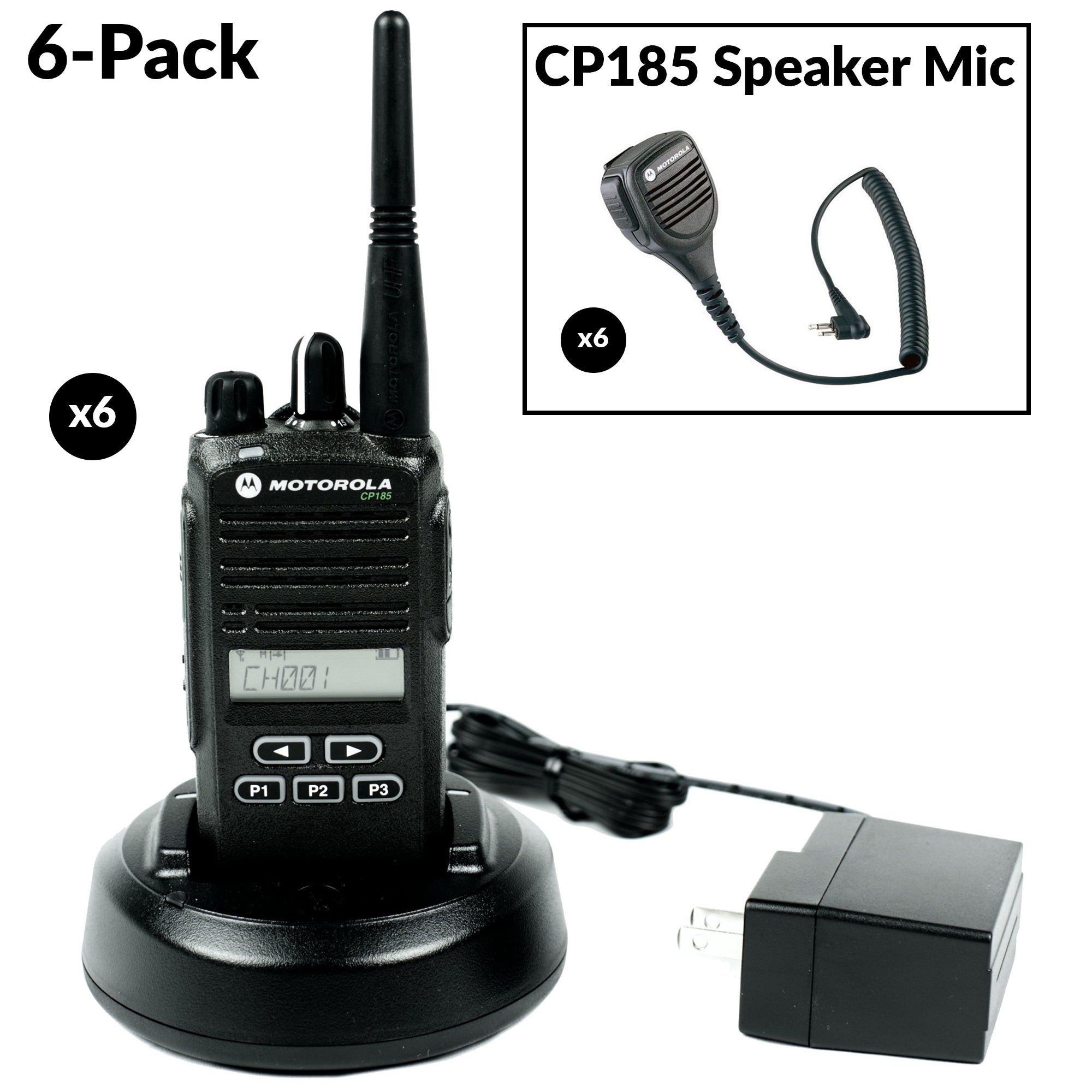

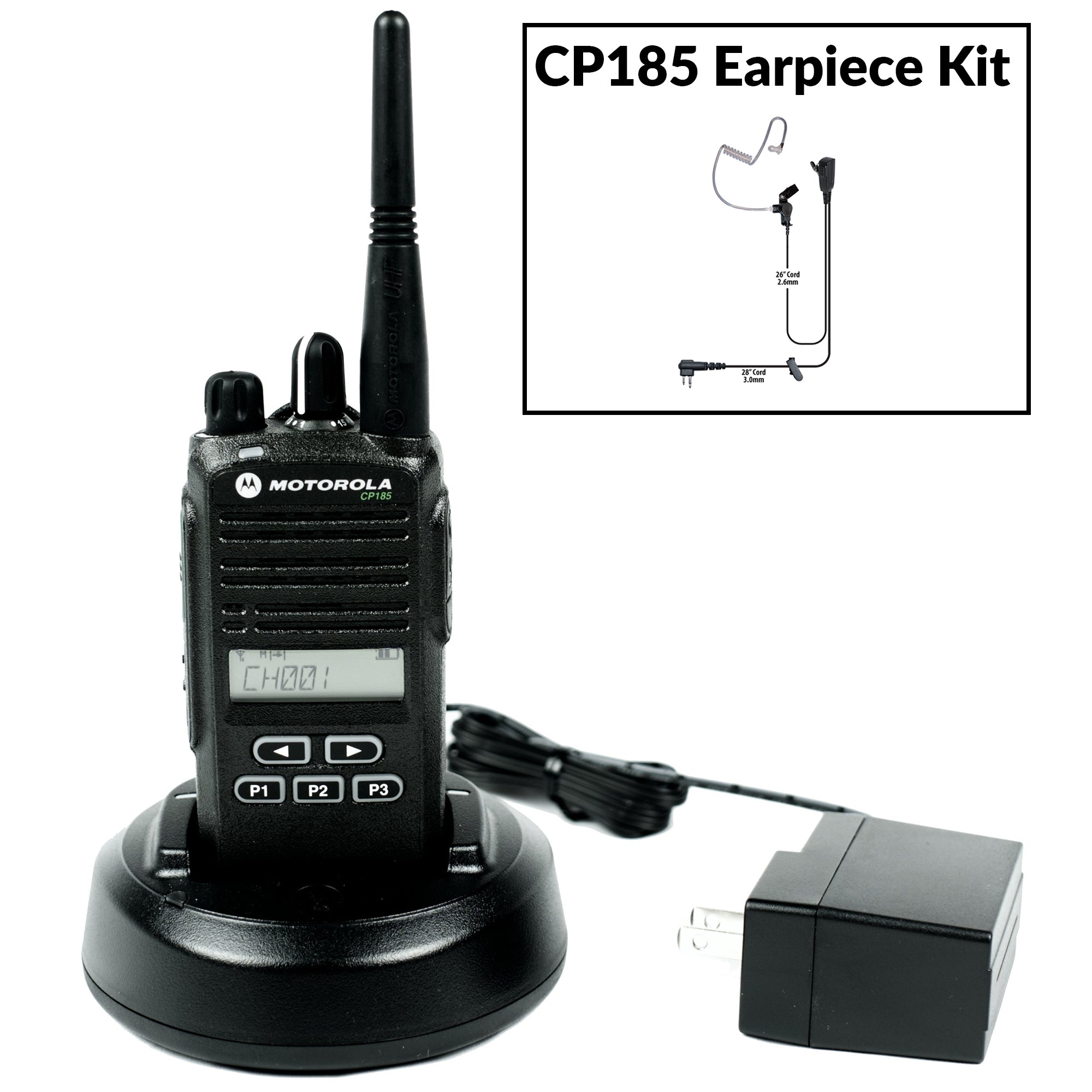

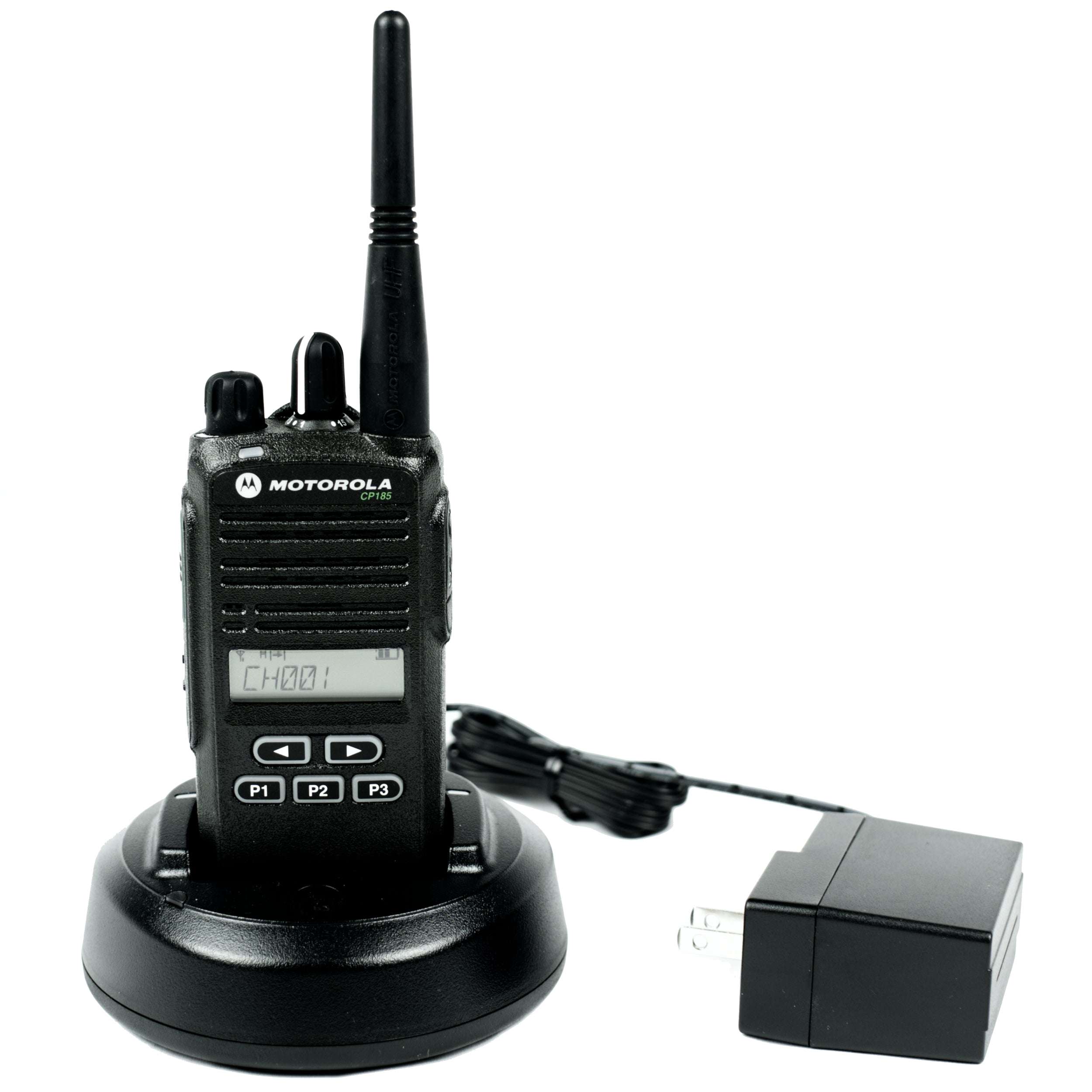

Included CP185 accessories
Shop all CP185 radio accessories
Resources
*Caution:
This radio model only supports frequencies that are evenly divisible by 5.0 kHz or 6.25 kHz. Frequencies in the VHF band in the U.S. have been assigned by the FCC with channel centers every 7.5 kHZ, which means that some of these frequencies are not evenly divisible by 5.0 kHz or 6.25 kHz. In order for a radio to be able to synthesize frequencies that are not evenly divisible by 5.0 kHz or 6.25 kHz, it requires a more sophisticated synthesizer and hardware than the one offered with this model.
Consider upgrading to a digital radio for more coverage
If you still need additional range, we suggest looking at a Motorola digital radio.
Digital radios give you a ~20% range bump as well as ~40% battery life bump, and static free audio.
Recommended digital alternatives
Radio Depot can program existing CP185 radios to work with any of the above digital radios on analog channels.
Free Motorola CP185 radio programming with purchase
