Description

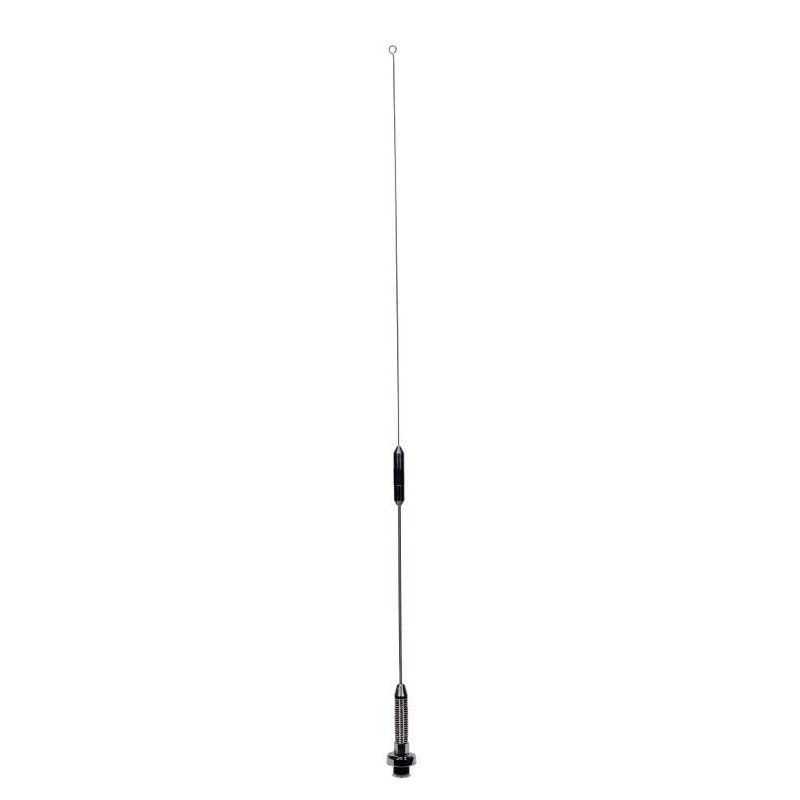

The Motorola HAE6022 is a UHF (403 - 527 MHz), 2.0 dB gain through-hole mount antenna. It is compatible with Motorola CM200D, CM300D, XPR 2500, XPR 5350e, and XPR 5550e mobile radios as well as several Icom and APX models.
The HAE6022 has a signal that radiates vertically, making it ideal for urban environments where buildings can obstruct the signal.
This antenna requires either a 3/4" hole be drilled on the roof of the vehicle or a right-angle mounting bracket with a 3/4" hole must be used to mount the antenna. Included with the HAE6022 is approximately 12 feet of coax and a loose Mini-UHF male connector that will need to be crimped on the coax.
NOTE: VX2100 / VX2200 mobile radios and all ICOM mobile radios using this antenna also require the 44203 adapter
Motorola HAE6022 Antenna Highlights
- 2.0 dB Gain
- Vertically radiating signal
- Utilizes UHF (403 - 527 MHz)
- 1 year Motorola warranty
HAE6022 Specifications
| Type or Style | Mobile Antenna |
| Frequency Band | UHF |
| Frequency Range | 403 - 527 MHz |
| GPS Capable | No |
| Gain | 2.0 dB |
| Mounting Style | Through-Hole |
| Color | Chrome |
| Warranty | 1 Year Manufacturer’s Warranty |
